How to Customized Ceramic Substrates for Diverse Power and Size Demand
As global industries advance toward electrification and intelligence, ceramic substrates are emerging as the backbone of power electronics, semiconductor packaging, and microelectronic systems. These substrates serve as essential carriers that support, interconnect, dissipate heat, and protect critical electronic components.
Meetcera offers a comprehensive range of high-performance ceramic substrate solutions designed for applications from low-power LEDs to high-power IGBT modules, including:

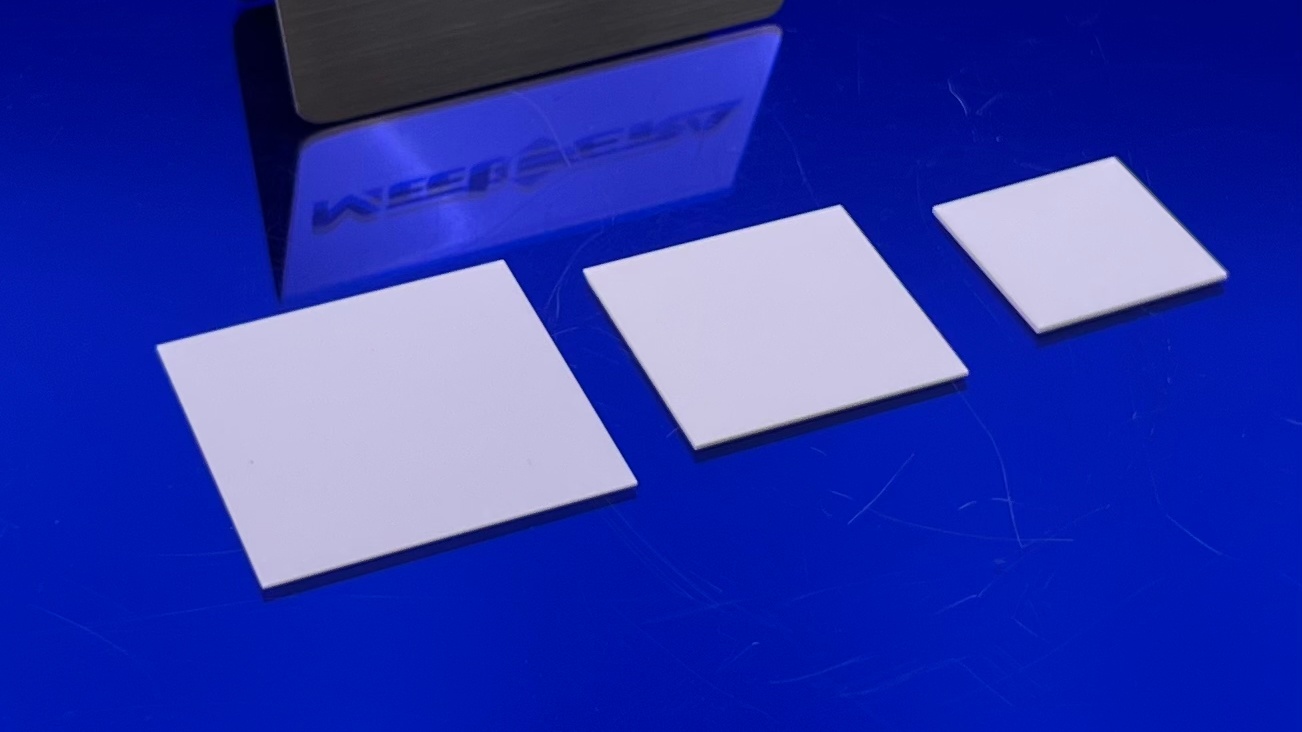

- 96% Alumina (Al₂O₃)
- Aluminum Nitride (AlN)
- Zirconia Toughened Alumina (ZTA)
- Silicon Nitride (Si₃N₄)
Global Ceramic Substrate Market Overview
The ceramic substrate industry continues to expand rapidly, driven by electric vehicles (EVs), renewable energy, 5G communication, and industrial automation.
- 2024 market size: USD 8.95 billion
- 2033 forecast: USD 14.9 billion (Business Research Insights)
- Long-term forecast (2035): USD 51.2 billion, CAGR 13.4% (Market Research Future)
- Power electronics segment: USD 1.2 billion (2023) → 1.9 billion (2032) (DataIntelo)
These trends underline a clear shift: thermal management, electrical insulation, and mechanical stability have become decisive factors for next-generation power electronics.
Meetcera’s Material System and Engineering Methodology

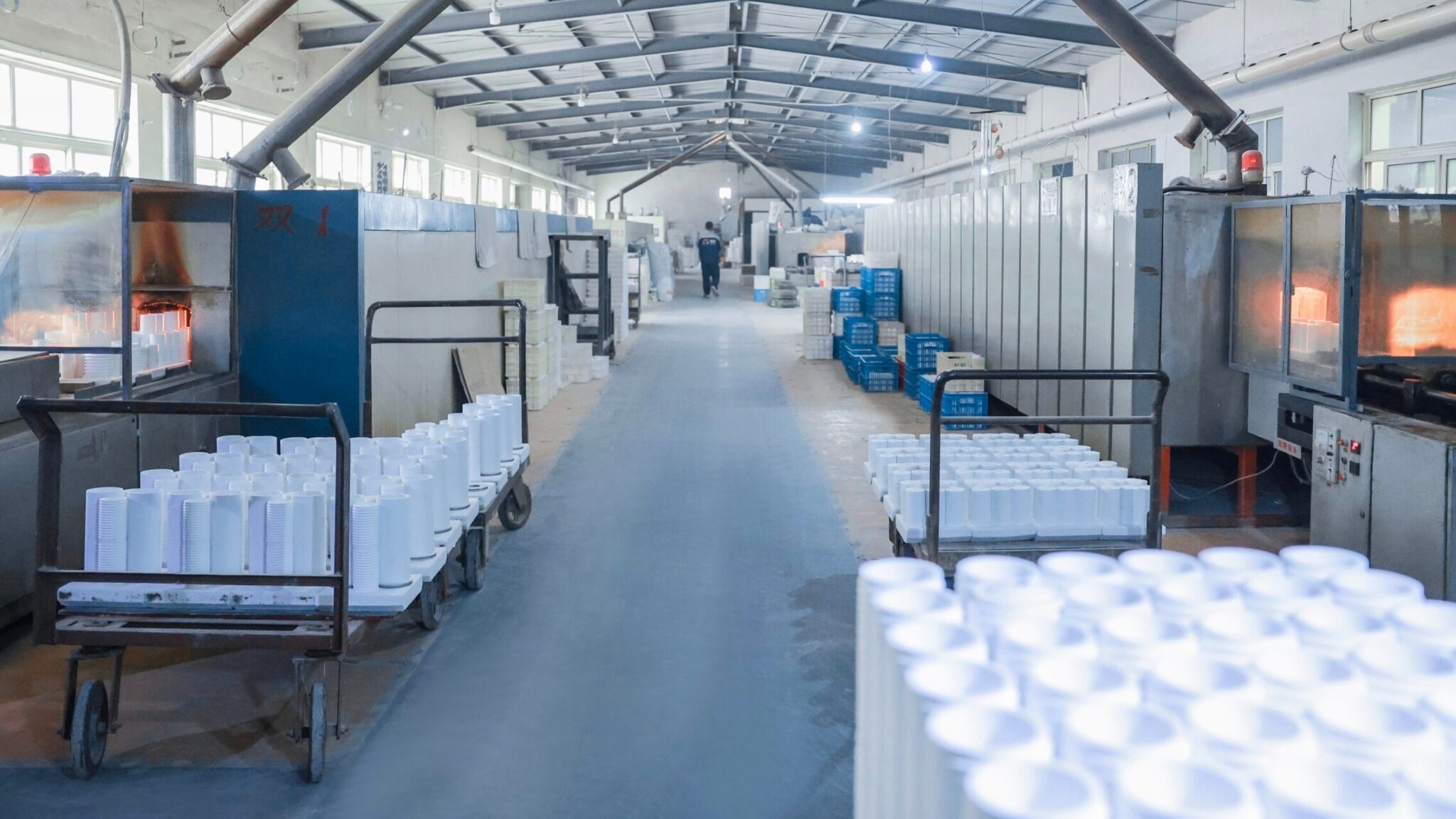

Meetcera has built a vertically integrated production and R&D system, ensuring material traceability, precise manufacturing, and full customization.

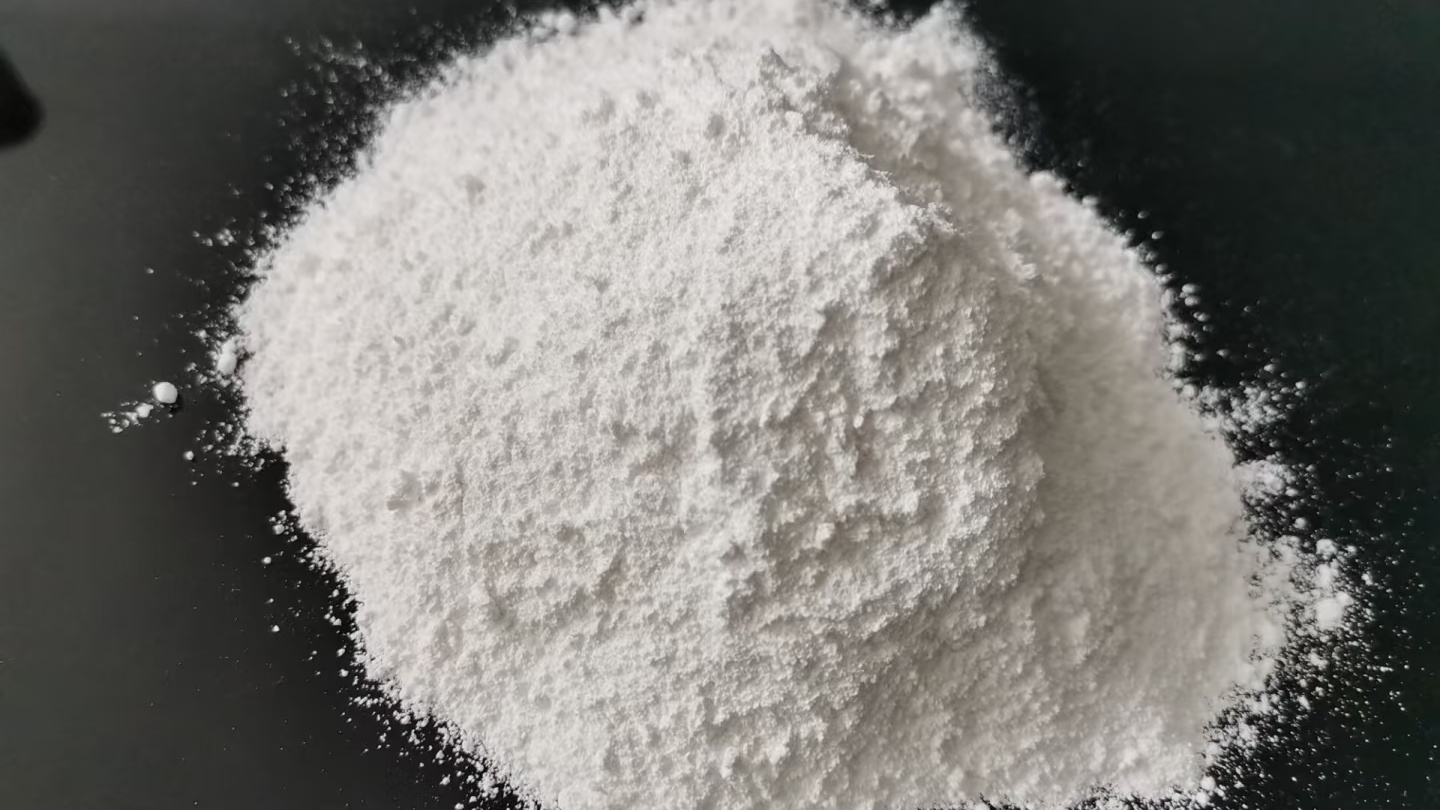

1. Multi-Material Portfolio
| Material | Key Features | Typical Applications |
|---|---|---|
| 96% Alumina (Al₂O₃) | Low warpage, strong corrosion resistance, easy processing | Chip resistors, low-power LEDs, energy storage, EV chargers |
| Aluminum Nitride (AlN) | High thermal conductivity, CTE close to silicon | Heat sinks, high-power IGBT modules, high-power LEDs |
| Zirconia Toughened Alumina (ZTA) | High strength and reflectivity, excellent machinability | Medium-power modules, optical instruments |
| Silicon Nitride (Si₃N₄) | High toughness, excellent heat conduction | High-power IGBT modules, wireless power modules |
These materials allow engineers to balance cost, heat performance, and mechanical strength based on their application needs.
2. Advanced Forming and Processing Capabilities
Meetcera masters multiple forming techniques including tape casting, dry pressing, and isostatic pressing.
This enables optimization for different shapes, sizes, and performance levels.
Specifications Overview:
| Parameter | Unit | Al₂O₃ | ZTA | AlN | Si₃N₄ |
|---|---|---|---|---|---|
| Effective Size (A×B) | mm | 50.8–190 | 50.8–190 | 50.8–190 | 138×190 |
| Thickness (T) | mm | 0.25–1.5 | 0.25–1.5 | 0.25–1.0 | 0.25 / 0.32 |
| Tolerance | mm | ±5% (min ±0.03) | ±5% (min ±0.03) | ±5% (min ±0.03) | ±5% (min ±0.03) |
| Warp | mm | ≤0.3% | ≤0.3% | ≤0.3% | ≤0.3% |
| Surface Roughness Ra | μm | 0.2–0.6 | 0.2–0.5 | 0.2–0.75 | 0.2–0.75 |
Machining:
Laser cutting, grinding, and polishing achieve micron-level dimensional precision and nanometer-level surface finish, ensuring compatibility with advanced semiconductor packaging.
3. R&D and Customization Strength
With 40+ patents and a continuously expanding technical platform, Meetcera customizes ceramic substrates according to required thickness, CTE, surface finish, and thermal performance — offering one-stop ceramic substrate solutions.
4. Quality Management and Reliability Assurance
Meetcera operates under the IATF 16949 automotive quality system, with full-process quality control and in-house testing for mechanical strength, thermal conductivity, and dielectric performance.
Every substrate meets strict reliability and consistency standards.
Application Scenarios
A. Low-Power LEDs and Charging Modules
Material: Al₂O₃
Benefits: Low warpage, excellent thermal shock resistance, corrosion-proof, easy to process.
Applications: Thick/thin-film resistors, LED backlight modules, energy storage, EV charging bases.
Available Sizes: 50.8–190 mm; thickness 0.25–1.5 mm; warp ≤ 0.3%.
B. High-Power IGBT Modules and Heat Sinks
Material: AlN / Si₃N₄
Benefits: High thermal conductivity, superior strength, thermal expansion close to silicon.
Applications: Power IGBTs, high-brightness LEDs, and wireless communication modules.
C. Medium-Power Devices and Instrumentation
Material: ZTA
Benefits: High mechanical strength and reflectivity, ideal for optical precision instruments.
Applications: Medium-power modules, LED drivers, and scientific equipment.
Industry reports confirm that EVs, 5G communication, and industrial automation are the top growth engines for the ceramic substrate market (Market Research Intellect).
Conclusion
Ceramic substrates are becoming the core enabler of efficient, reliable power electronics.
Meetcera’s expertise — from material formulation to precision machining and certified quality control — positions the company as a trusted global partner for industries seeking high-performance substrate solutions.
From LEDs to IGBTs, Meetcera provides customized, scalable, and high-reliability ceramic substrates to meet the challenges of modern power density and miniaturization.
