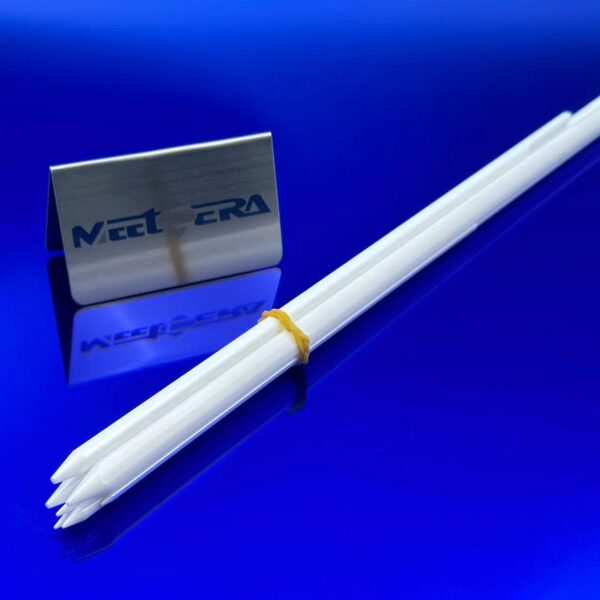

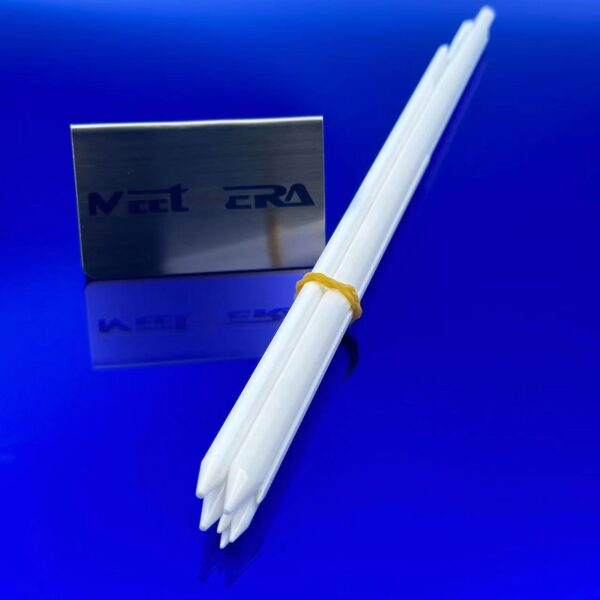

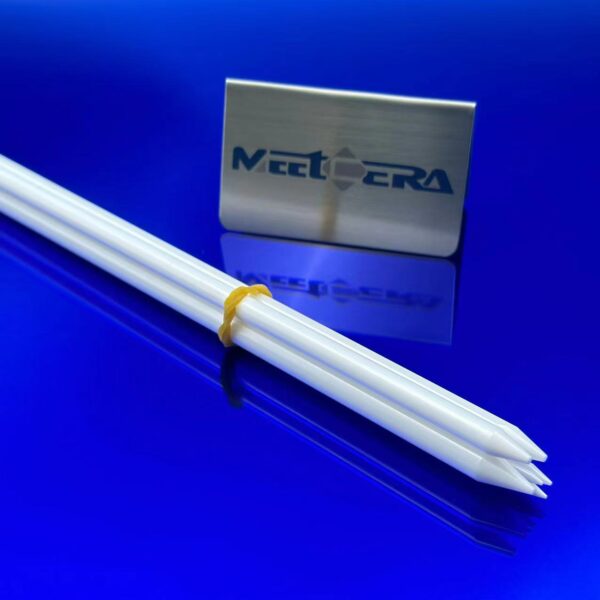

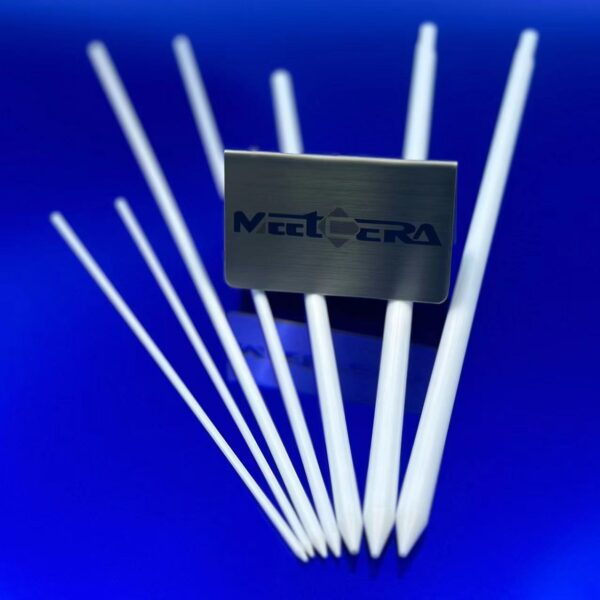

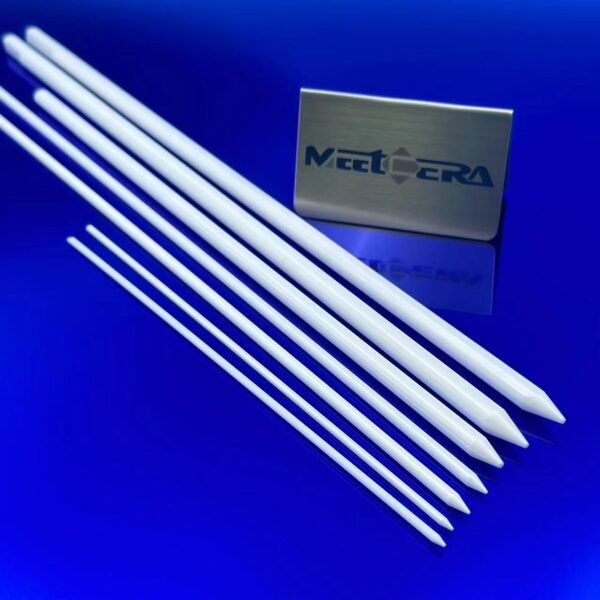

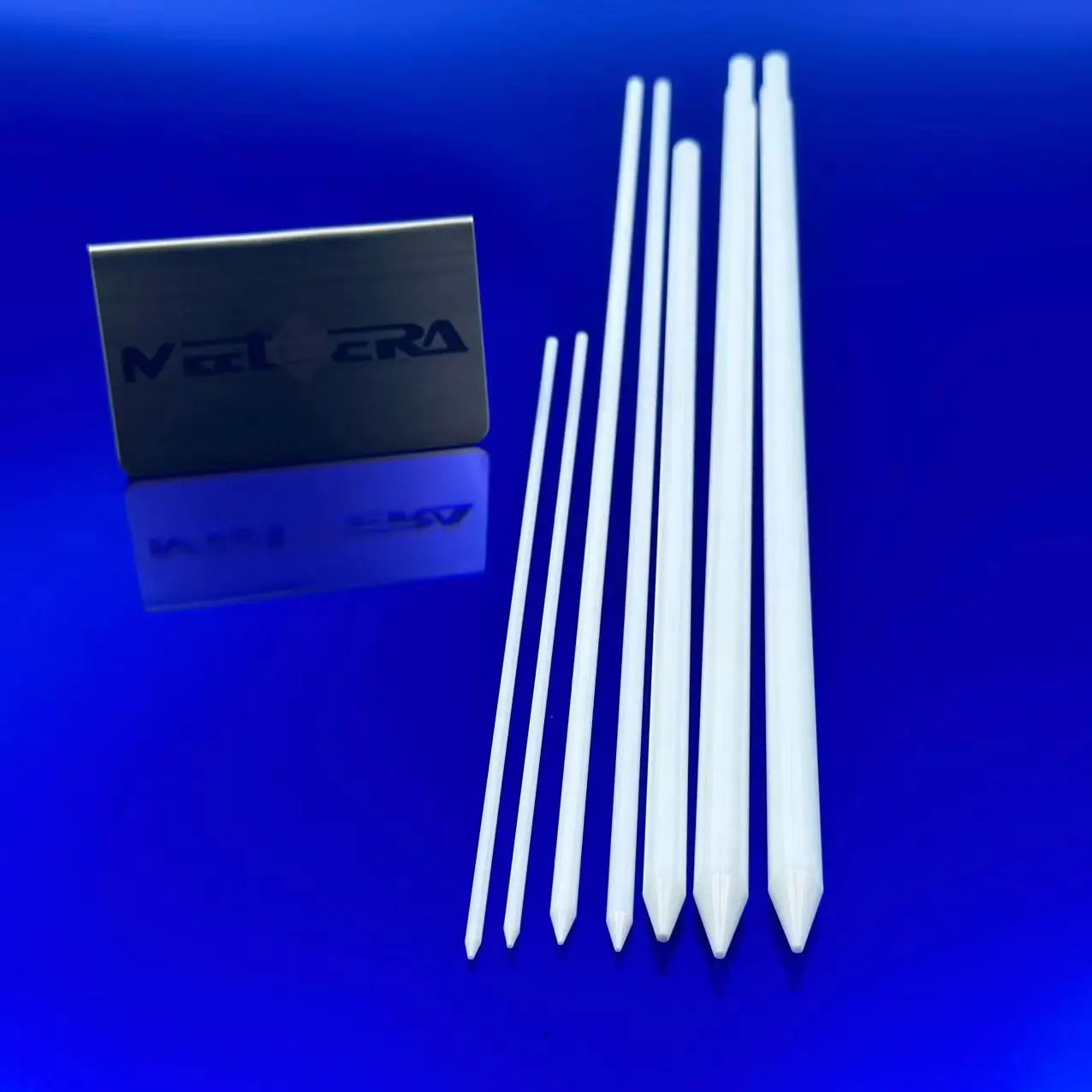

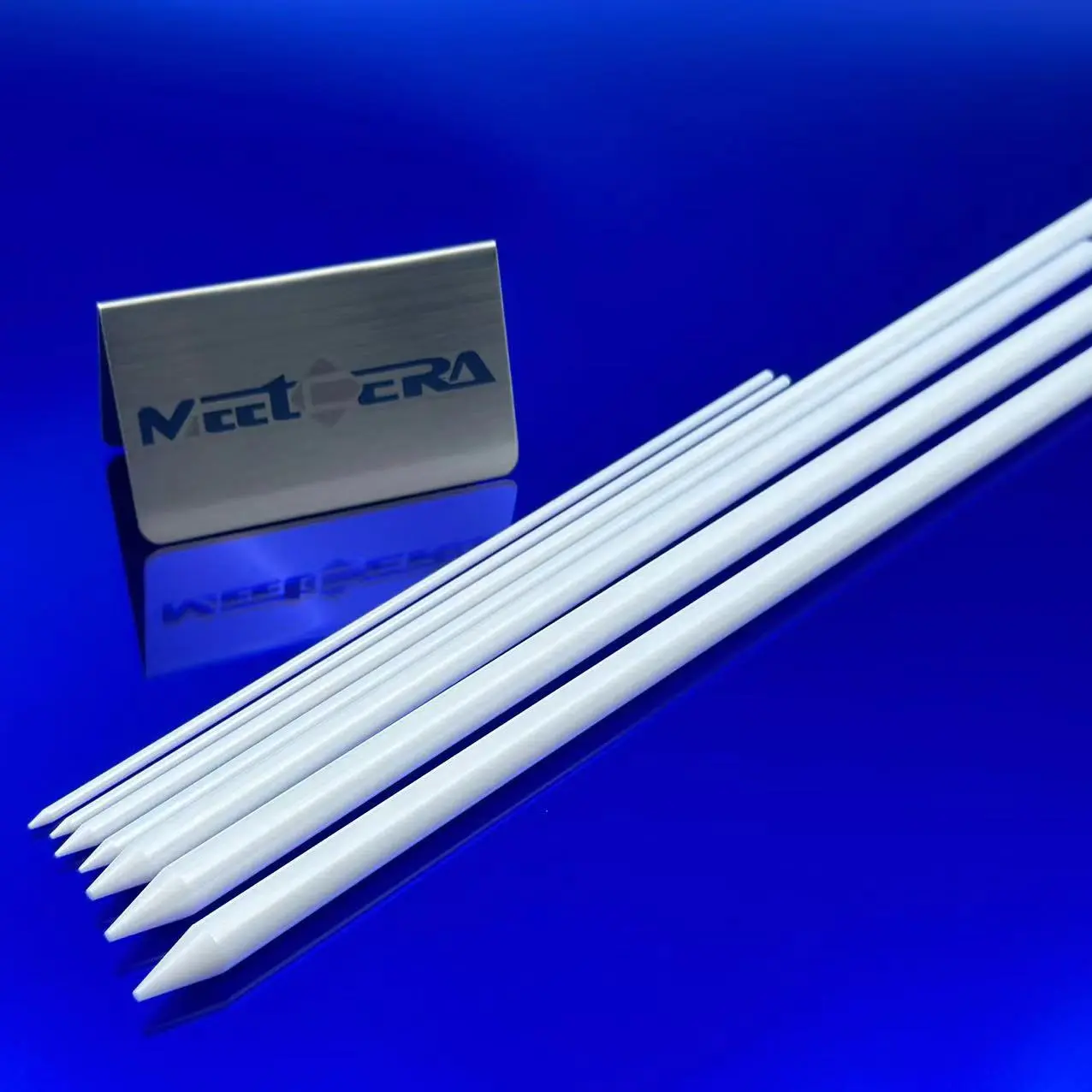

3Y-TZP Point Zirconia Ceramic Rod
Precision-machined from high-purity 3 mol% yttria-stabilized tetragonal zirconia polycrystal (3Y-TZP), featuring a multi-pointed conical tip design. Ideal for applications requiring high precision, extreme wear resistance, and corrosion resistance at the contact tip.
Key Features
- Material: High-purity 3Y-TZP zirconia
- Tip: Precision multi-cone尖 (commonly 3–4 points), sharp and highly consistent angles
- Surface: Mirror polish, Ra ≤ 0.02 μm
- Color: Ivory white / milky white
- Customizable: Diameter, total length, tip length, number of points, etc.
Typical Physical & Mechanical Properties
| Property | Typical Value | Unit | Remark |
|---|---|---|---|
| Density | ≥6.05 | g/cm³ | High densification |
| Hardness | ≥13 | GPa (HV) | 接近 sapphire, far exceeds stainless steel |
| Flexural Strength | 1200–1500 | MPa | Extremely high strength |
| Fracture Toughness | 8–10 | MPa·m¹/² | Transformation toughening – excellent crack resistance |
| Max Service Temperature | ≤1200 (long-term) / ≤2400 (short-term) | °C | Outstanding thermal stability |
| Corrosion Resistance | Excellent | — | Resistant to most acids & alkalis (except HF) |
| Biocompatibility | Excellent | — | Suitable for medical applications |
Core Advantages
- Ultra-High Wear Resistance & Long Service Life Hardness far exceeds metals; service life can be 10–50× longer than stainless steel under frequent friction and abrasive conditions.
- High-Precision Tip & Zero Metal Contamination Mirror-polished tip does not deform, does not shed particles, and releases no metal ions — perfect for cleanroom, precision, and medical/semiconductor environments.
- Excellent Fracture Toughness (Transformation Toughening) Stress-induced t→m phase transformation creates volume expansion and compressive stress at crack tips, effectively suppressing crack propagation — achieving both extreme hardness and toughness.
Typical Applications
- Medical devices: Biopsy needle guide rods, minimally invasive surgical positioning tips, puncture assistance components
- Semiconductor / electronics testing: High-precision probes, test pins, positioning pins
- Precision measurement & positioning: CMM (coordinate measuring machine) styli, industrial probe tips
FAQ
Q1: What are the main advantages of this pointed zirconia rod compared to stainless steel needles?
A: Hardness and wear resistance are more than 10× higher, resulting in dramatically longer service life; zero metal ion contamination, ideal for clean / medical / semiconductor environments; tip maintains sharpness and precision much longer without deformation or dulling.
Q2: Can you customize single-point, double-point, or multi-point tips? What are the available diameter and length ranges?
A: Yes, fully customizable. Common diameters 3–8 mm, total lengths 50–300 mm, tip lengths 5–20 mm; number of points can be 1, 2, 3, 4 or more; tip angles can also be specified (e.g. 30°, 45°, 60°, etc.).
Welcome to inquire about samples and bulk customization Send your drawings, samples, or detailed working conditions — we’ll provide fast quotation and production scheduling. Meetcera — Your trusted partner for high-performance 3Y-TZP pointed zirconia ceramic solutions!
