Ceramic-to-metal sealing products

Place of Origin:Fujian, China
Type:Ceramic Parts, Cermic Raw Materials,Tensioner
Application:Industrial Ceramic
Material:Alumina Ceramic
Brand Name:meetcera
Processing Service:Bending, Welding, Cutting, Punching, Decoiling, Moulding, Cutting,Punching,Moulding
Product name:metallized ceramic
MOQ:10
Feature:Excellent Wear Resisting
Surface Treatment:Normal,polished,diamond polished,matte
Keywords:Tensioner ,Assemblies,
Material option:Alumina
Color:White

This product is currently out of stock and unavailable.

ENQUIRY!
SKU1600902003518-1
Status99 in stock
Categories,
FacebookXPinterestRedditDeliciousLinkedinWhatsappTelegramEmail

Ceramic-to-metal sealing products

MEETCERA offer customers a wide variety of vacuum-tight, hermetically sealed ceramic-to-metal components. Ceramic-to-metal sealing products not only have the characteristics of ceramic high temperature resistance, corrosion resistance, but also have the strength and toughness of metal. They are widely used in electronic aerospace, medical industry and other applications.
The best customer service and effcient solution could be provided is MEETCERA commitment.
Product Name

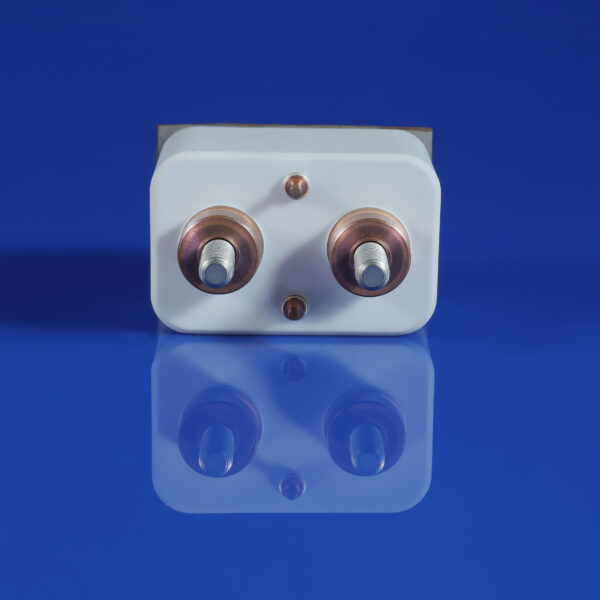

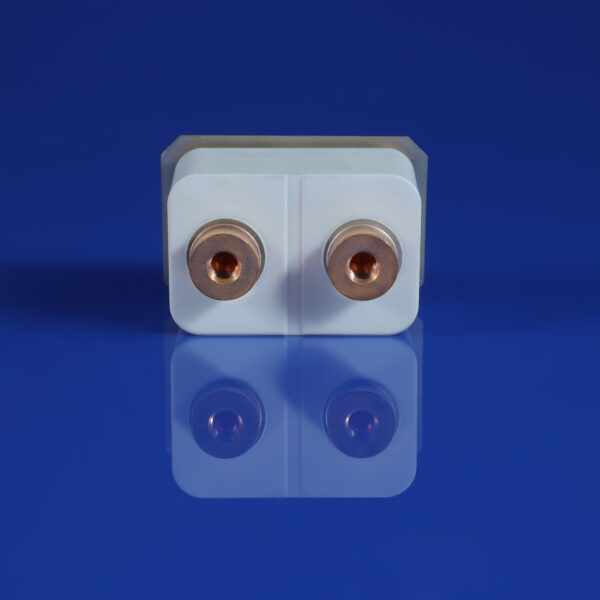

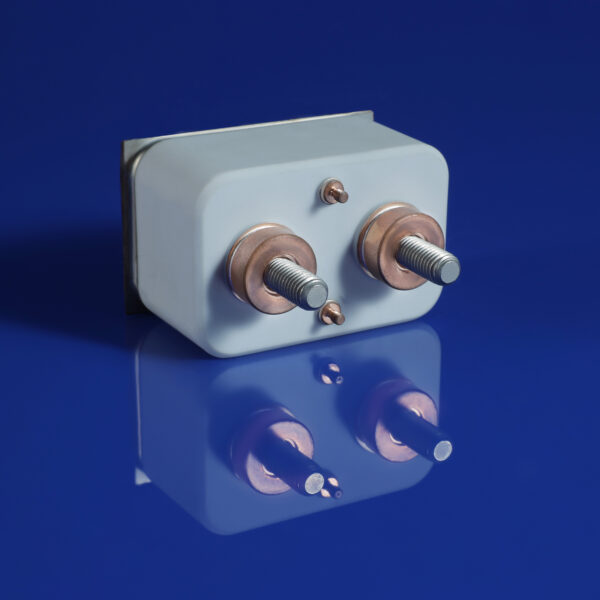

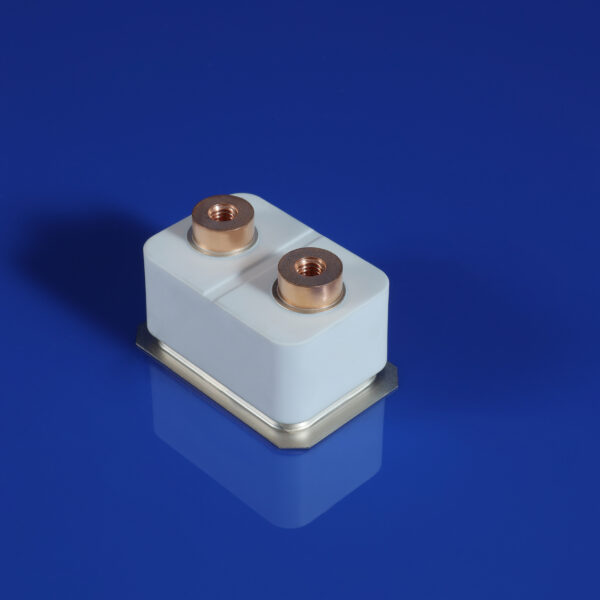

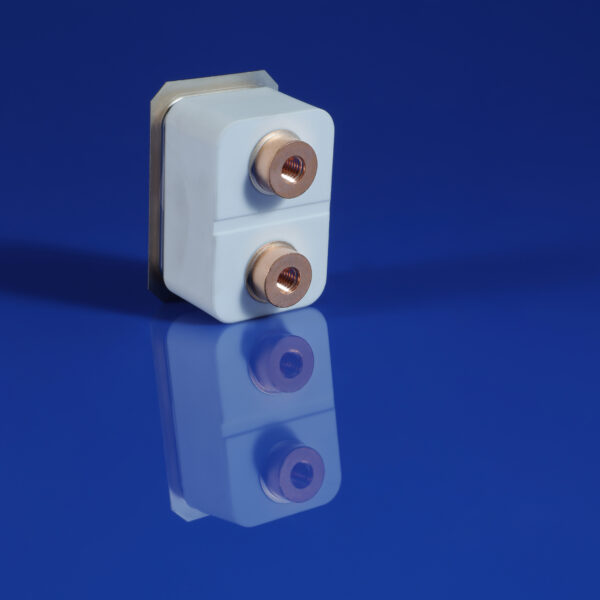

Precision Ceramic Metallization Housings for Relays
Compositions
96.0% alumina or 99.5% high purity alumina (Al2O3)
Metalization
Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating
Mo+Mn Layer
25 +/-10μm in thickness
Nickel Layer
2 -10μm in thickness
Helium Leak Testing
1×10-12 Pa·m3/s
Tensile Strength
≥800Kg/cm2
Material Density
3.68 - 3.90 g/cm3
Tolerance
+/- 0.005mm
Finishing
Ra 0.02
Max. Using Temperature
1650 oC
Using Fields
DC Relayer, Fuel Cell Units, New Energy Vehicles, Charging Piles, DC Railway, Electric Forklifts, Electrical Appliance, Electric
Products

Hermetic Seal Properties:

  • Hermeticity: up to 1×10-9 atm cc/sec He
  • Working Temperature > 500°C depending on materials and geometry
  • Insulation Resistance: Typically exceeds 1 GΩ @ 100 VDC

Ceramic-to-Metal Sealing Features:

  • High Abrasion Resistance
  • High Mechanical Strength
  • Pressures over 10,000 PSI
  • High Temperature Usage
  • Low Dielectric Loss
  • Mass Spectrometer Leak Tested
  • High Chemical Stability

Ceramic-to-Metal Welding Process:

  • Cleaning
  • Pasting
  • Metallizing
  • Nickel Plating
  • Mounting
  • Welding
  • Inspection&Packing

Ceramic-to-Metal Sealing Applications:

  • Relay Insulators
  • Capacitor
  • Magnetrons
  • Travelling Wave Tube
  • X-ray Tube Components
  • Electrosurgical Instrumentation
  • Implantable Packages and Feedthroughs
  • Gas Detectors
  • Microscopes (TEM, SEM)
  • High Voltage Feedthroughs
  • High-temperature Feedthroughs
  • RF Feedthroughs
  • Optoelectronics and Power Tube
  • Laser Tubes
  • Thyristors
  • Diodes
  • And etc

Metallized Ceramic Catalog Download PDF
