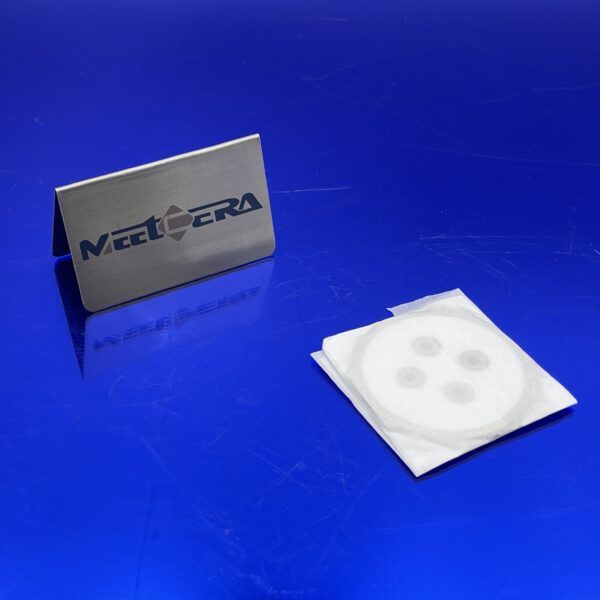

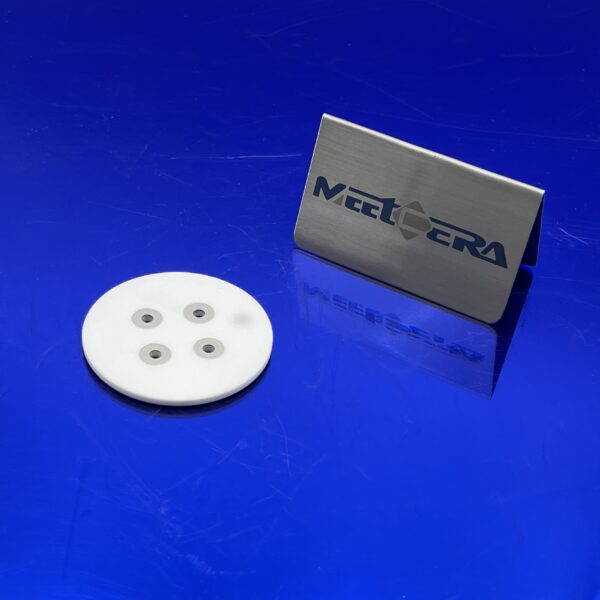

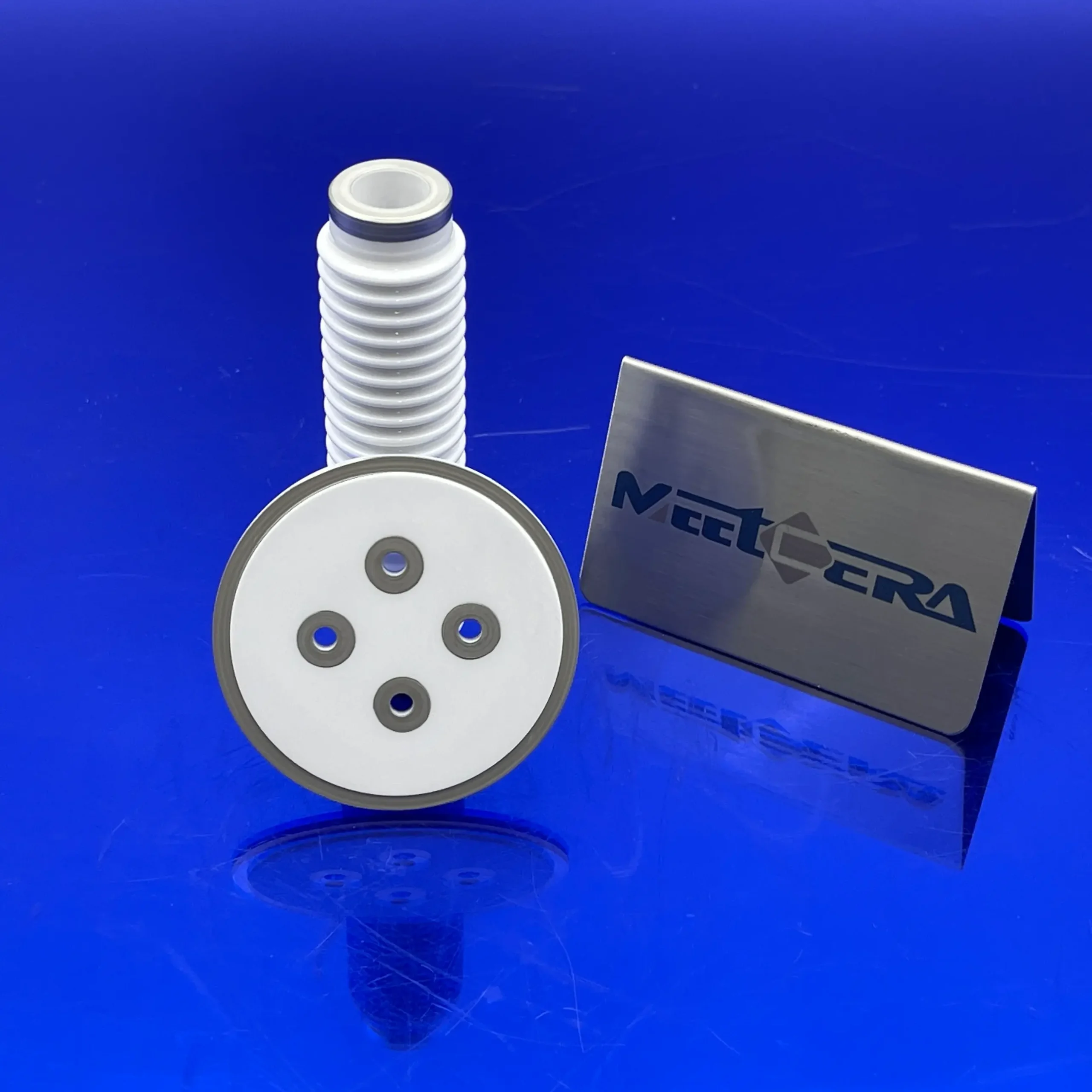

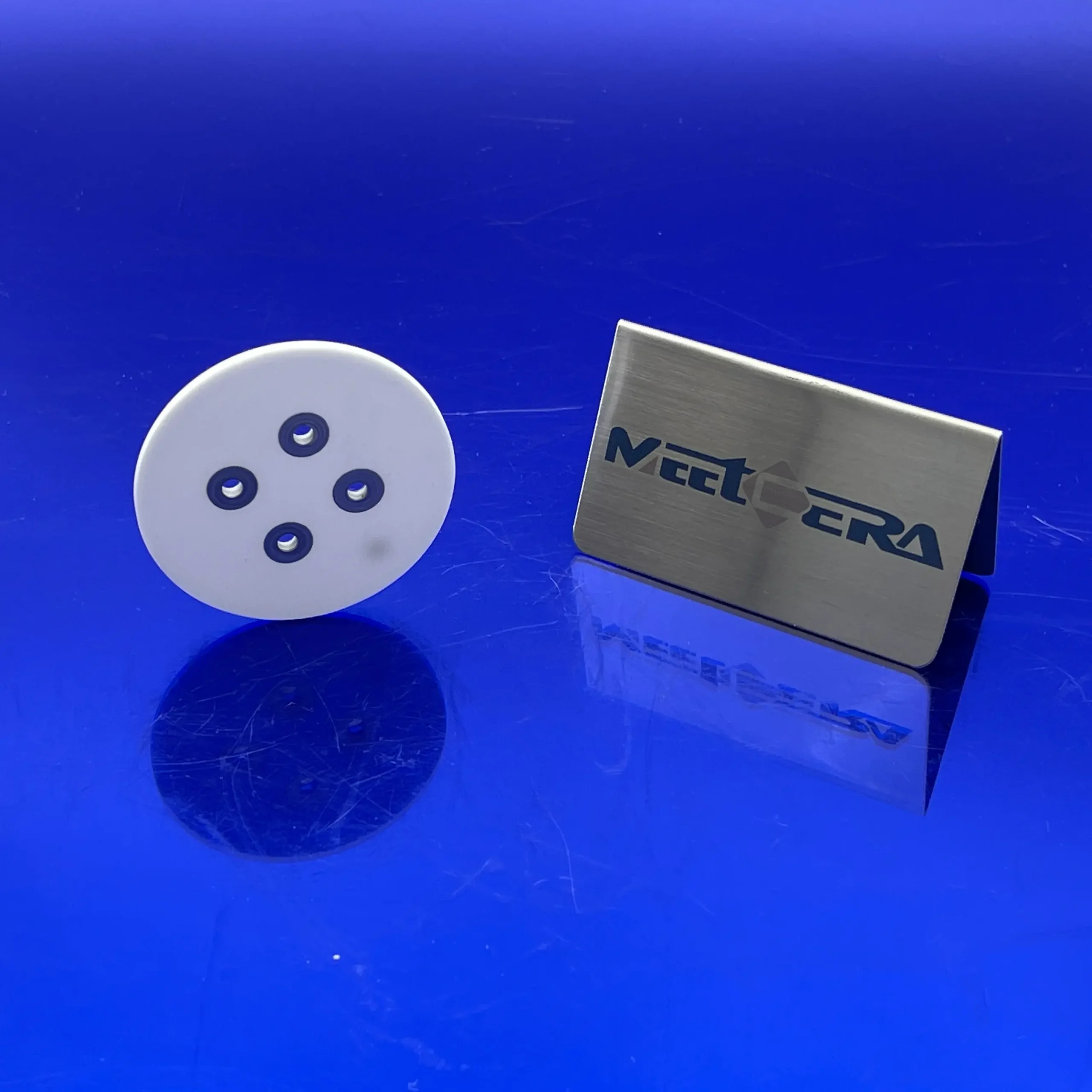

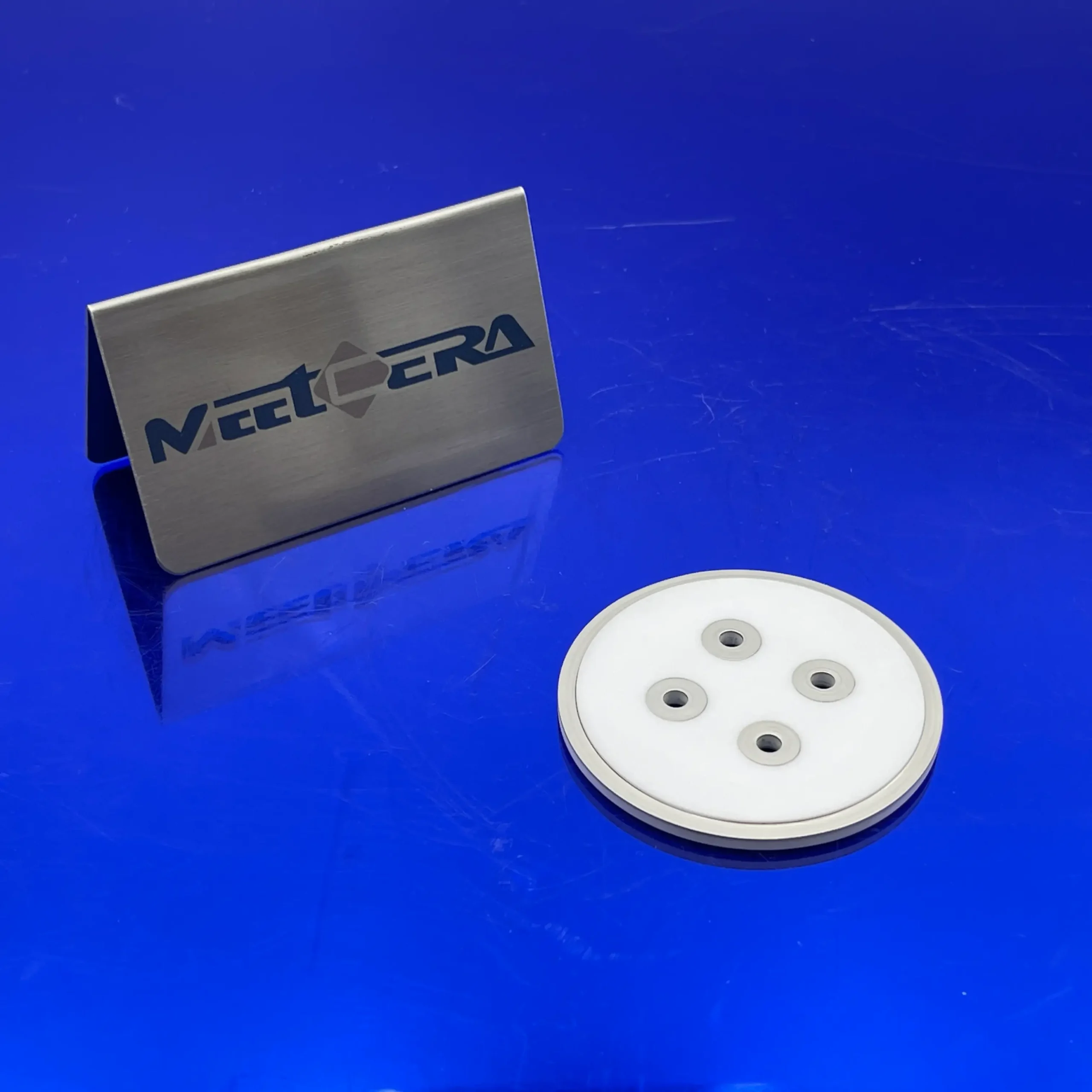

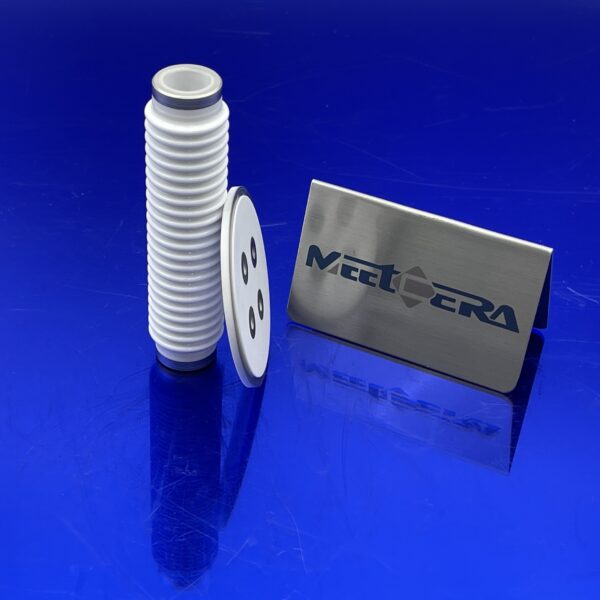

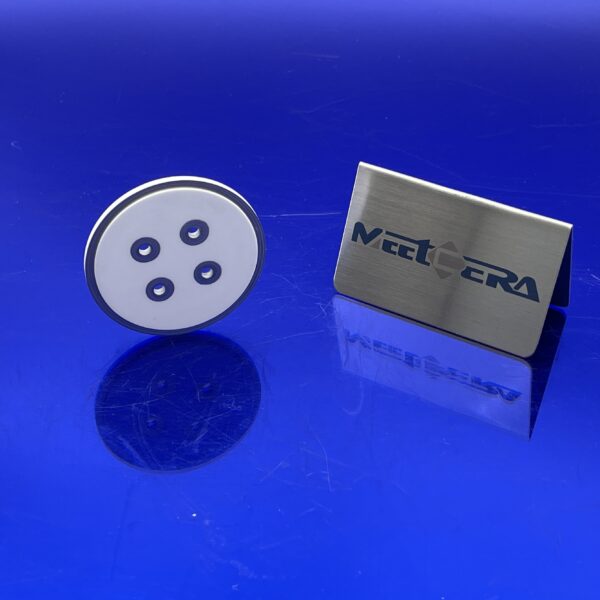

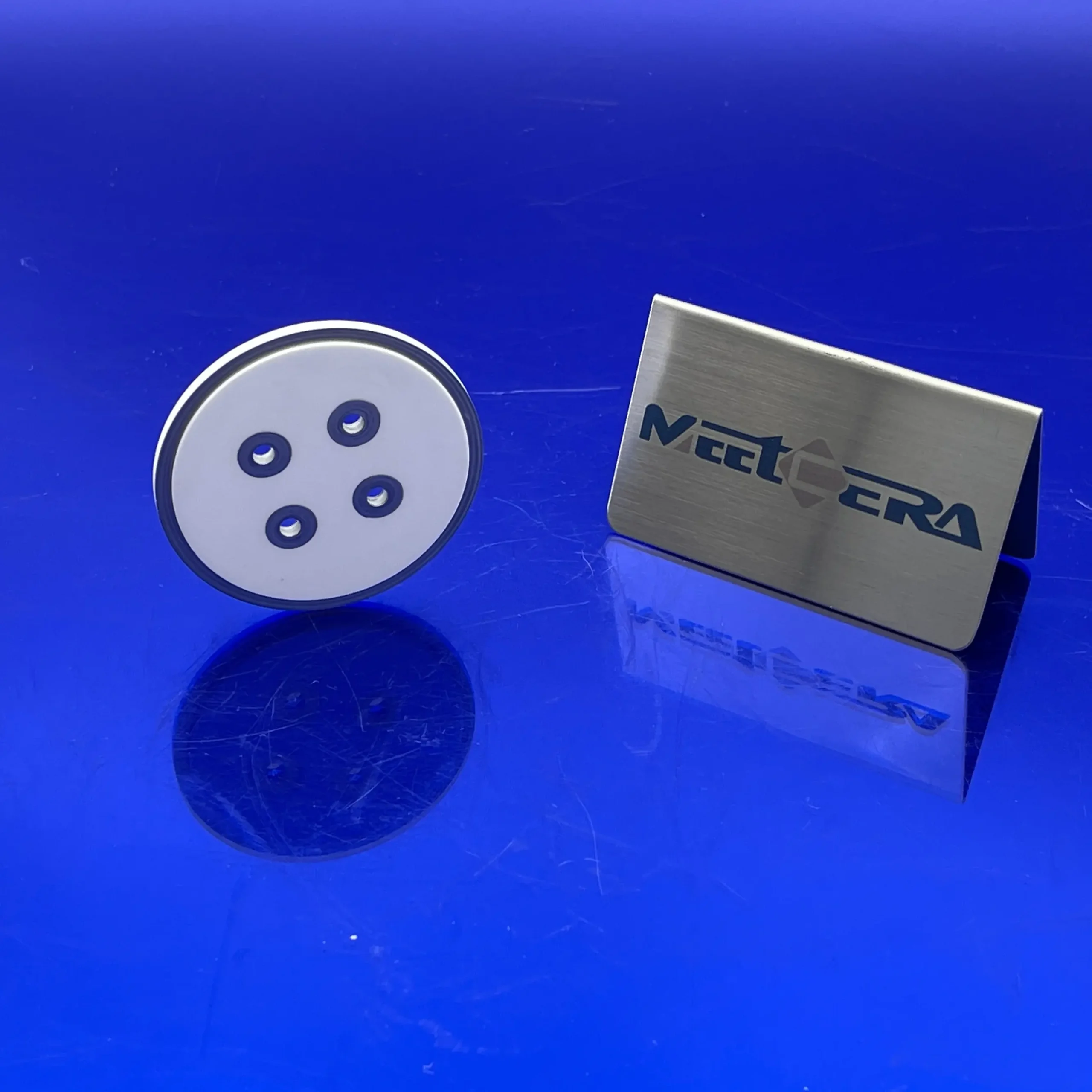

Metallized ceramic circular plate

Metallized ceramic circular plate

No. Parameter Typical Value / Specification Unit
1 Alumina Purity 95%or 99%  %
2 Bulk Density ≥ 3.63 g/cm³
3 Thermal Conductivity (25°C) 22.45 W/m·K
4 Coefficient of Thermal Expansion (20–1000°C) 8.26 ×10⁻⁶/°C
5 Flexural Strength ≥340 MPa
6 Dielectric Strength ≥8.3 kV/mm
7 Dielectric Constant (1 MHz) 9.1 @1MHz
8 Dielectric Loss (1 MHz) ≤0.0004 @1MHz
9 Metallization Layer (Mo/Mn) 15–25  μm
10 Plating Layer (Ni/Cu/Au etc.) 8–10   μm
ENQUIRY!
Categories
FacebookLinkedin

Metallized ceramic components

Meetcera supplies precision metallized ceramic components in aluminum oxide ceramics for the military, medical, and aerospace industries. Through spray, needle, and brush coatings or screen printing our capabilities allow us to metallized on flat, cylindrical, and complex ceramic bodies. Moly-Manganese is the typical base coat materials used for metallization.
Product Name
Metallized Ceramics Componenets ( Tube, Ring, Plate, Rod, Substrate . . . )
Material
95%, 96%, 99% Alumina (AL2O3)
Color
White+Metal
Coaing Layer
Mo/Mn
Coaing thickness
15-25um
Plated Layer
Ni,Cu,Au,Etc
Plating thickness
8-10um
Brand
MEETCERA

 Metallized Ceramics Applications:

  • Ceramic Feed-through Insulators (for hermetic electrical pass-throughs)
  • Ceramic Headers and High-Power Receptacles
  • Insulating Discs, Rings, and Cylinders
  • Precipitator Products and Power Switches
  • Traveling Wave Tubes and Vacuum Interrupters
  • Windows, Power Grid Tubes, and X-ray Tubes

These applications benefit from the components' ability to maintain integrity in harsh conditions, such as vacuum electronics, RF/microwave devices, sensors, and power modules

Metallized Ceramics Joining types:

  • Ceramic + Mo/Mn Metallized + plating Ni
  • Ceramic + Mo/Mn Metallized + plating Ag
  • Ceramic + Mo/Mn Metallized + plating Au
  • Ceramic + printing Ag

FAQ

Q.What is the purpose of metallization?

A.It enables strong brazing/soldering of ceramics to metals, creating reliable hermetic seals and electrical connections in high-vacuum or high-voltage applications.

Q.Why use Molybdenum-Manganese (Mo/Mn) as the base coating?

A.Mo/Mn provides excellent adhesion to alumina through high-temperature sintering, ensuring high bond strength and reliability.

Q. Do you offer custom metallized ceramics?

A.Yes, we produce fully customized components based on your drawings, samples, or specific requirements.

For detailed technical data, quotations,  please contact us directly. Meetcera is committed to delivering innovative, high-quality solutions for your most challenging applications.

Metallized Ceramic Catalog Download PDF
