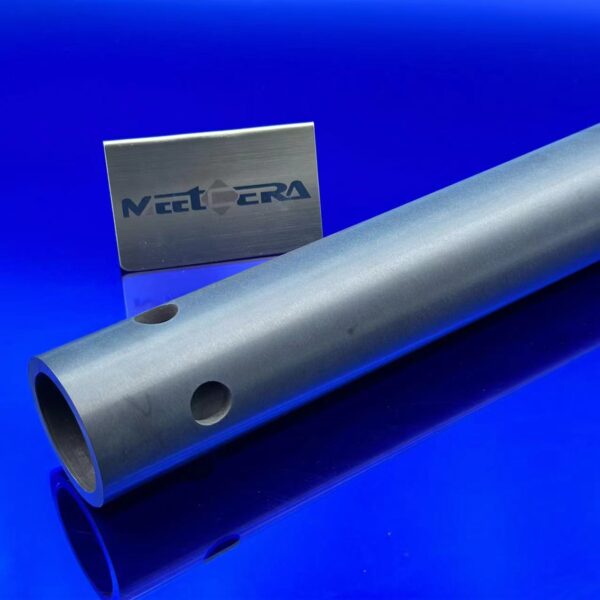

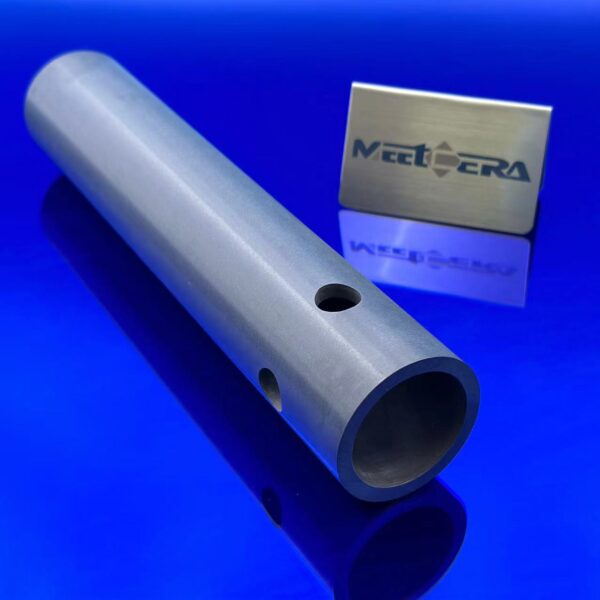

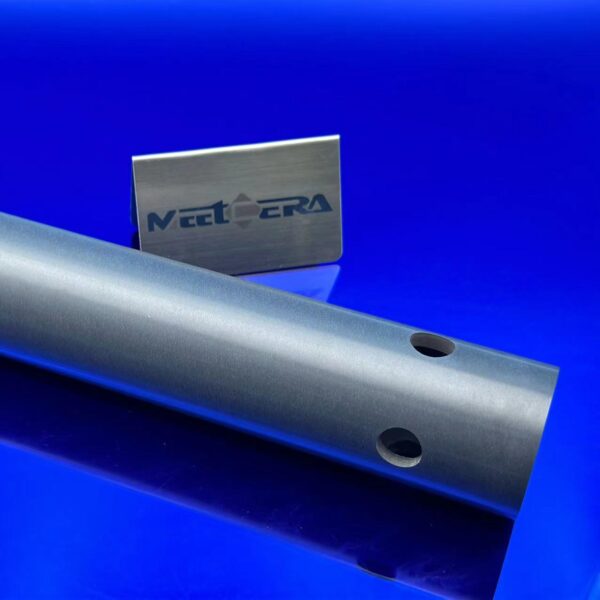

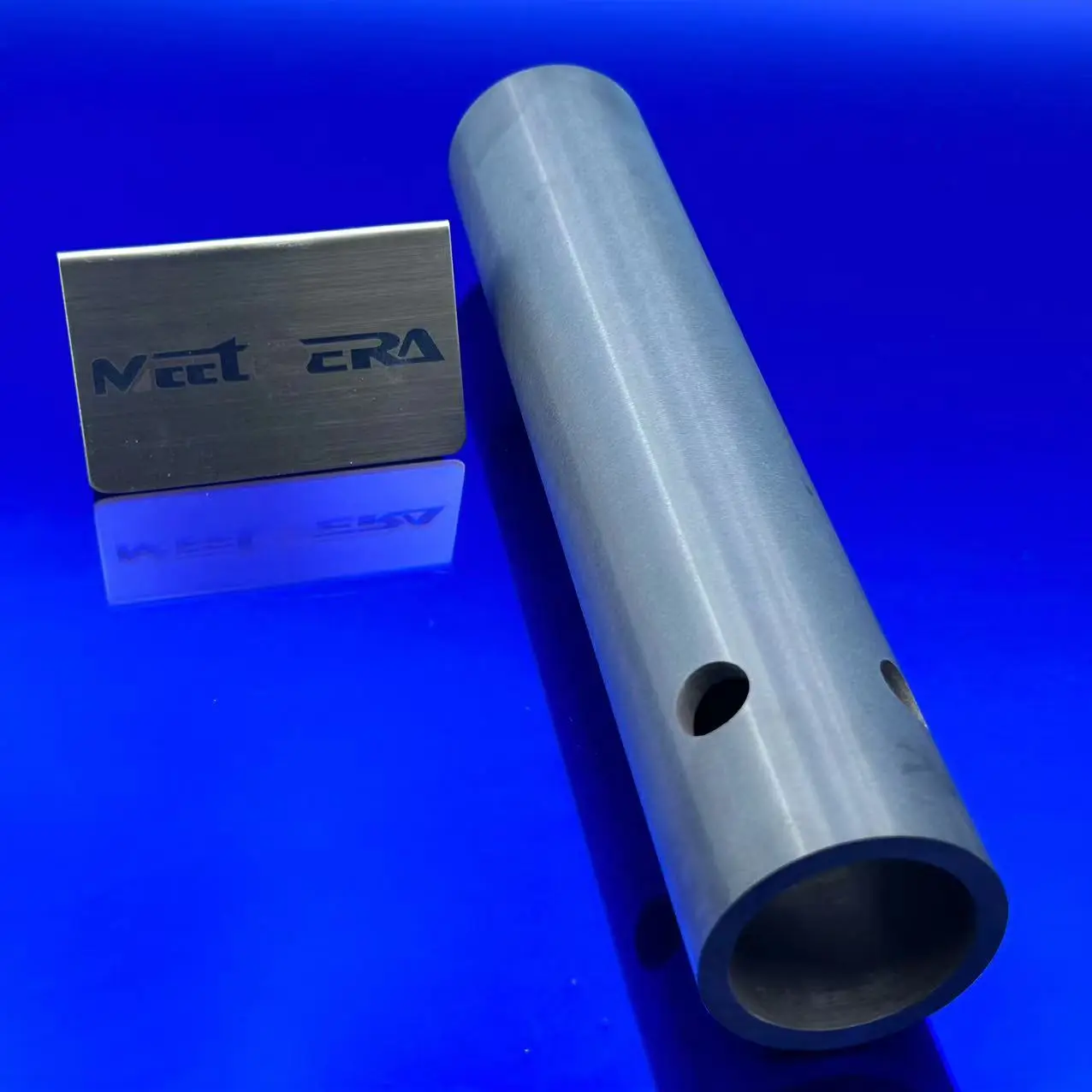

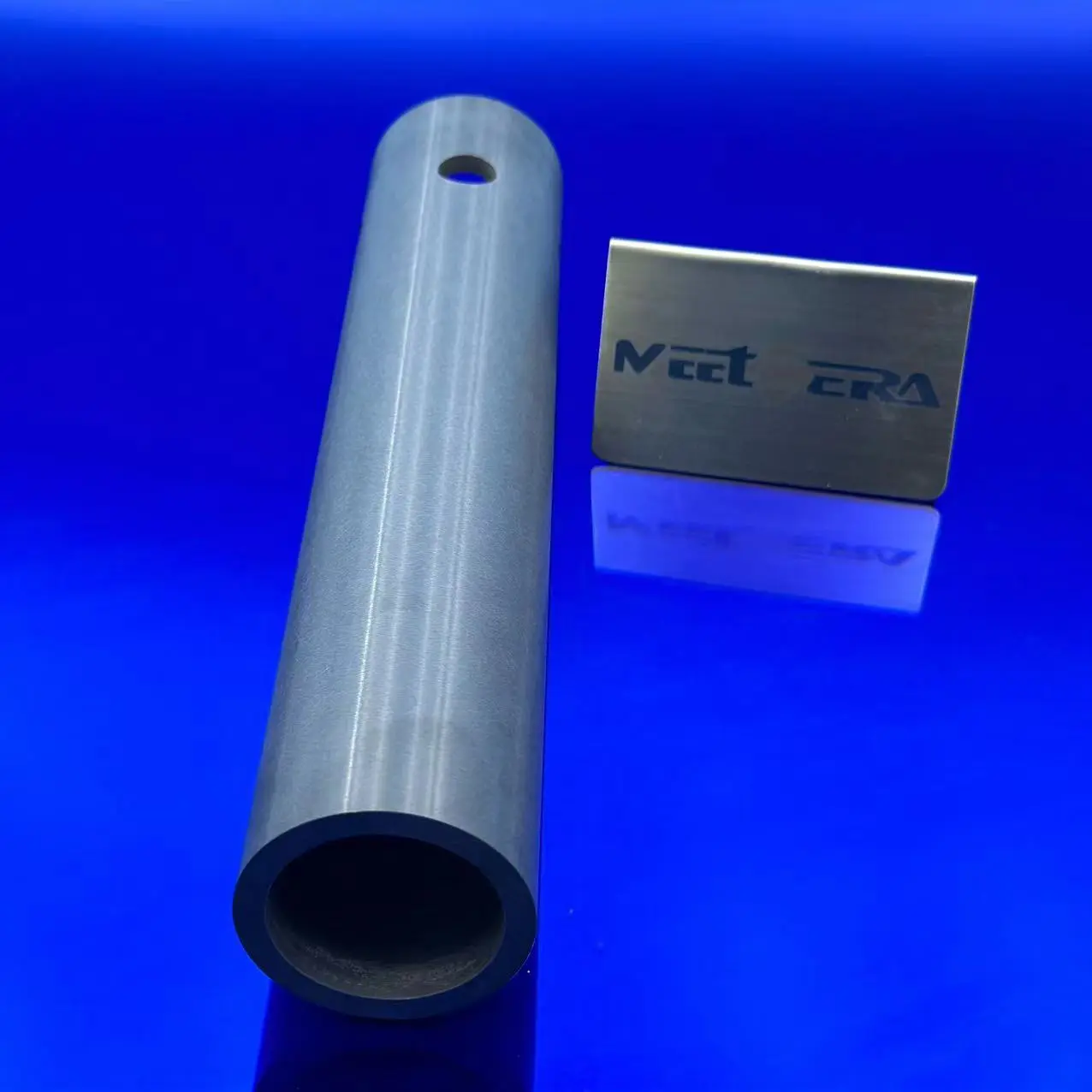

Silicon Nitride Ceramic Tube
Ceramic Si3N4 Silicon Nitride Tube
Silicon Nitride (Si3N4) is 60% lighter than steel but strong enough to survive some of the most demanding applications in a variety of industries. This lightweight, high-strength ceramic material is used as an alternative to stainless steel, super alloys, tungsten carbides and first-generation ceramics such as Al2O3 and ZrO2. It offers excellent thermal shock resistance and high fracture toughness, compatibility with nonferrous metal melts, and improved structural reliability compared to other ceramic materials.
Silicon Nitride (Si3N4) is 60% lighter than steel but strong enough to survive some of the most demanding applications in a variety of industries. This lightweight, high-strength ceramic material is used as an alternative to stainless steel, super alloys, tungsten carbides and first-generation ceramics such as Al2O3 and ZrO2. It offers excellent thermal shock resistance and high fracture toughness, compatibility with nonferrous metal melts, and improved structural reliability compared to other ceramic materials.
Silicon Nitride (Si3N4) Characteristics:
1 Good thermal shock resistance
2 Creep resistance
3 Low density
4 High fracture toughness
5 High hardness and wear resistance
6 Electrical resistivity
|
Silion Nitride Ceramic Properties
|
||||
|
Properties
|
Units
|
Silicon Nitride (Si3N4)
|
||
|
HPSi3N4
|
GPSi3N4
|
|||
|
Mechanical
|
Density
|
g/cm3
|
3.24~3.28
|
3.24~3.26
|
|
Color
|
——
|
Gray
|
Gray
|
|
|
Water Absorption
|
%
|
0
|
0
|
|
|
Vickers Hardness
|
Gpa
|
14
|
14
|
|
|
Flexural Strength(20°C)
|
Mpa
|
850-900
|
750-800
|
|
|
Compressive Strength(20°C)
|
Mpa
|
3000
|
3000
|
|
|
Thermal
|
Thermal Conductivity(20°C)
|
W/m.K
|
42
|
22
|
|
Thermal Shock Resistance(20°C)
|
Δ T(C)
|
617
|
605
|
|
|
Maximum Use Temperature
|
°C
|
1500
|
1500
|
|
|
Electrical
|
Volume Resistivity(25°C)
|
Ω.cm
|
——
|
——
|
