What Are the Components of an X-Ray Tube?

Simply put, the X-ray tube is the true “heart” of every hospital X-ray machine, CT scanner, and dental imaging system. It looks like a big sealed light bulb, but inside it turns electricity into the invisible X-rays that let doctors see your bones.

A complete modern medical X-ray tube consists of just these 6 major components:

1. Cathode – produces electrons
2. Anode – electrons crash here to create X-rays
3. High-vacuum glass or metal-ceramic envelope
4. Rotating mechanism¹ (99 % of today’s tubes use a rotating anode)
5. Cooling system² – prevents meltdown in seconds
6. Protective housing³ – the thick lead shield that stops radiation leaks

This article uses the simplest language + clear diagrams to help medical students, radiographers, service engineers, or anyone curious fully understand every part from scratch.

How Does an X-Ray Tube Actually Make X-Rays?

1. The cathode filament is heated red-hot → electrons “boil off” like crazy
2. 80–150 kV high voltage is applied → electrons are yanked toward the anode at ~1/3 the speed of light
3. Electrons slam into the tungsten target and suddenly “hit the brakes” → their kinetic energy instantly turns into X-ray photons (called Bremsstrahlung radiation)
4. X-rays shoot out through a tiny side window (beryllium window), pass through the patient, and create the image on the detector

That’s literally all it takes — four steps from electricity to X-ray!

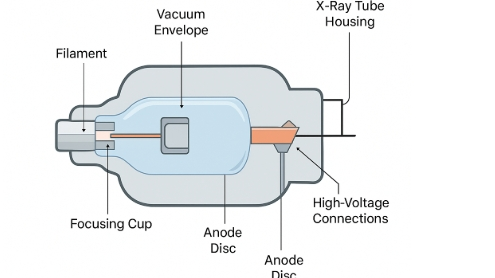

(Insert high-resolution classic cross-section diagram with every part clearly labeled)

The 6 Core Components Explained

1. Cathode⁴ – The “Electron Gun”

• Core part: tungsten filament (same material as old incandescent bulbs)
• Heats to ~2400 °C in 2 seconds and shakes electrons loose
• Focusing cup shapes the electrons into a tight, straight beam
• Most tubes have dual focal spots: large for chest, small for sharp extremity images
• This filament is the #1 thing that fails — it slowly evaporates and finally snaps

2. Anode⁵ – The “Target Disc”

• 99 % of medical tubes use a rotating anode: a tungsten-rhenium disc spinning 9,000–10,000 RPM
• Impact temperature hits 2500 °C instantly — without rotation it would melt a pit in one second
• Rotation spreads the heat over a ring track, letting the tube handle hundreds of kilowatts
• Spinning is powered by an internal rotor + external stator coils (exactly like an electric fan motor)

3. Vacuum Envelope (Glass or Metal-Ceramic)

• Vacuum is millions of times better than outer space
• Even a tiny bit of air would scatter electrons and burn out the filament immediately
• Older tubes used glass (you could see the glowing filament); modern CT tubes use stronger metal-ceramic

4. Beryllium Window – The “X-Ray Escape Door”

• Regular glass would absorb most low-energy X-rays
• A 0.1–1 mm thin beryllium window lets almost all X-rays out while keeping vacuum sealed
• No beryllium window = dark, useless images

5. Cooling System + Insulating Oil

• 99 % of input energy becomes heat
• The tube is submerged in circulating transformer oil that carries heat away
• High-end CT tubes add water or forced-air cooling
• The oil also provides high-voltage insulation to prevent arcing

6. Protective Housing – The “Thick Lead Tank”

• Entire insert + oil is sealed inside a lead-lined metal case
• Blocks stray radiation in every direction except the beryllium window
• Includes an expansion bellows so oil can expand and contract safely

One-sentence memory trick:
Red-hot filament spits electrons → high voltage accelerates → smash into spinning tungsten disc → sudden stop makes X-rays → escape through beryllium window → safely contained inside a lead tank.

Frequently Asked Questions (FAQ)

Q1: Which part of an X-ray tube⁶ fails most often?
A: The tungsten filament in the cathode. It evaporates over time and eventually breaks — 90 % of tube replacements are because the filament died.

Q2: Why can a rotating anode handle tens of times more power than a stationary one?
A: Because the heat is spread over a moving ring instead of burning one tiny spot.

Q3: How thick is the beryllium window?
A: Regular diagnostic tubes: 0.1–0.5 mm
CT tubes: 0.5–1 mm
Mammography tubes: as thin as 0.05–0.1 mm

Q4: How can you tell if an X-ray tube is leaking oil?
A: Oil stains on the housing, overheating alarms, crackling/arcing sounds during exposure, or a collapsed or overly swollen expansion bellows. Stop using it immediately!
