Precision Conical Ceramic Insulator For Vacuum Electronics
1. Unique Selling Points
- Optimized Field Stress Distribution: The tapered/conical geometry is specifically designed to manage electrical gradients. It solves the common problem of "field concentration" at the edges, significantly reducing the risk of dielectric breakdown in high-voltage environments compared to standard cylindrical designs.
- High-Precision Taper Tolerance: Our advanced CNC grinding ensures the taper angle and diameter are controlled within ±0.01mm. This solves the "seating and alignment" issues during assembly, ensuring a perfect mechanical fit for hermetic sealing.
- Robust Mo-Mn Metallization Bond: We utilize a high-temp co-fired Molybdenum-Manganese process that penetrates the ceramic surface. This solves the "metal layer delamination" pain point, allowing for repeated thermal cycling during brazing without compromising vacuum integrity.
- Vacuum-Grade Material Purity: Using only 95%-99.7% pure Alumina, our cones feature ultra-low outgassing and high resistivity, making them ideal for UHV (Ultra-High Vacuum) systems where purity is non-negotiable.
2. Product Description
In high-voltage and RF applications, geometry is as critical as material purity. A standard insulator often fails at the points of highest electrical stress, leading to surface arcing and system failure. For engineers designing next-generation vacuum tubes or particle accelerators, a standard component isn't enough. Our Metallized Tapered Ceramic Cones are engineered to provide the precise field grading and mechanical stability required for mission-critical hardware.

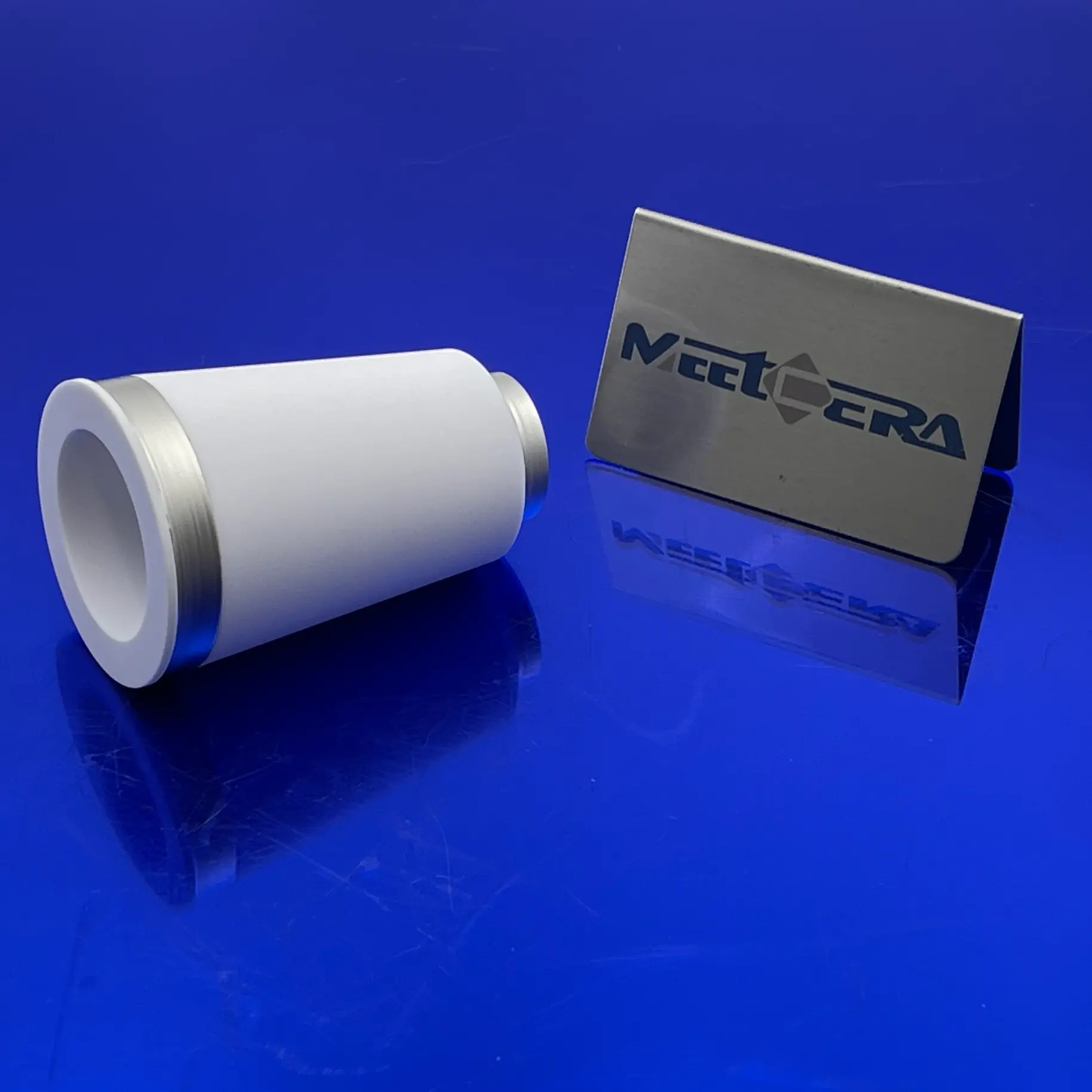

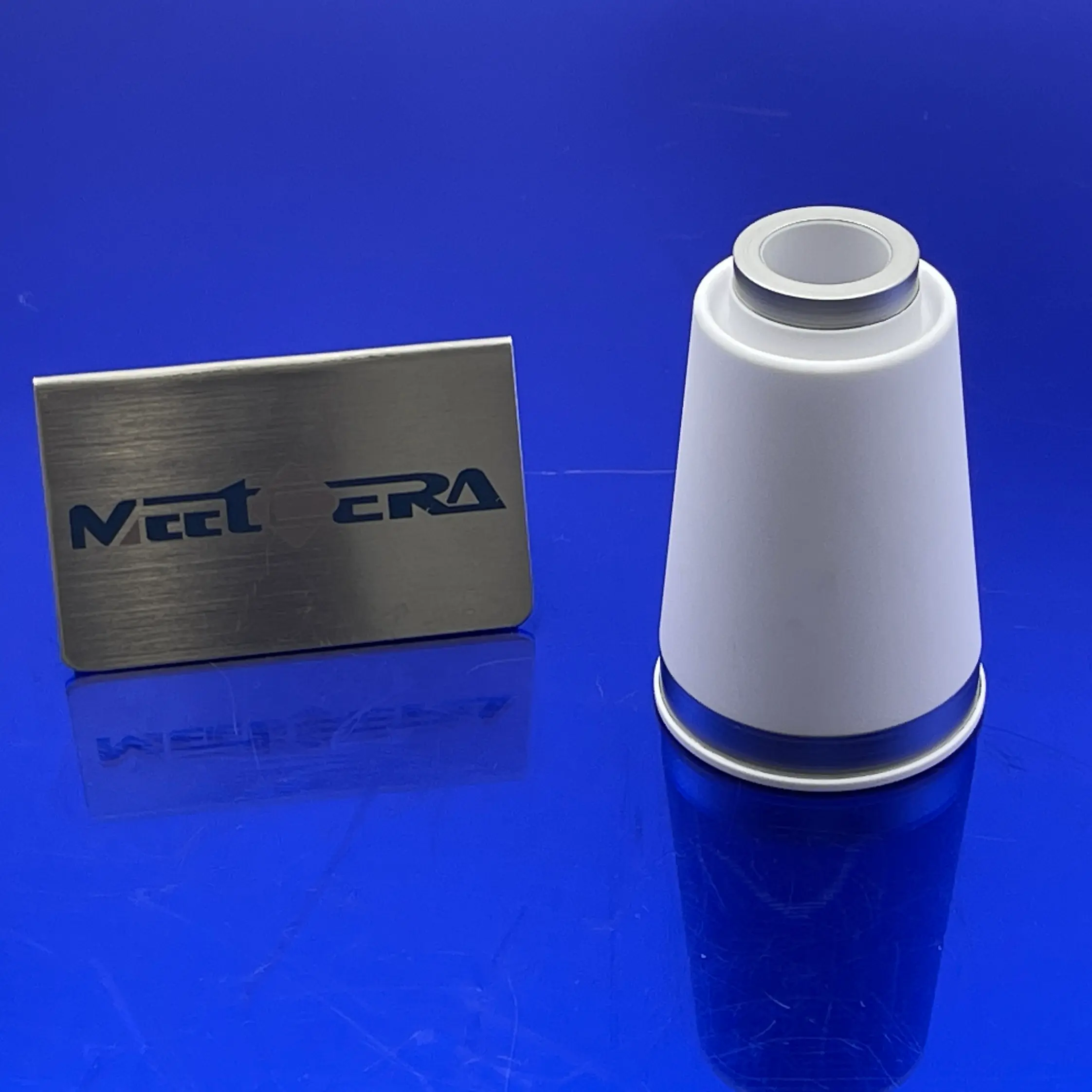

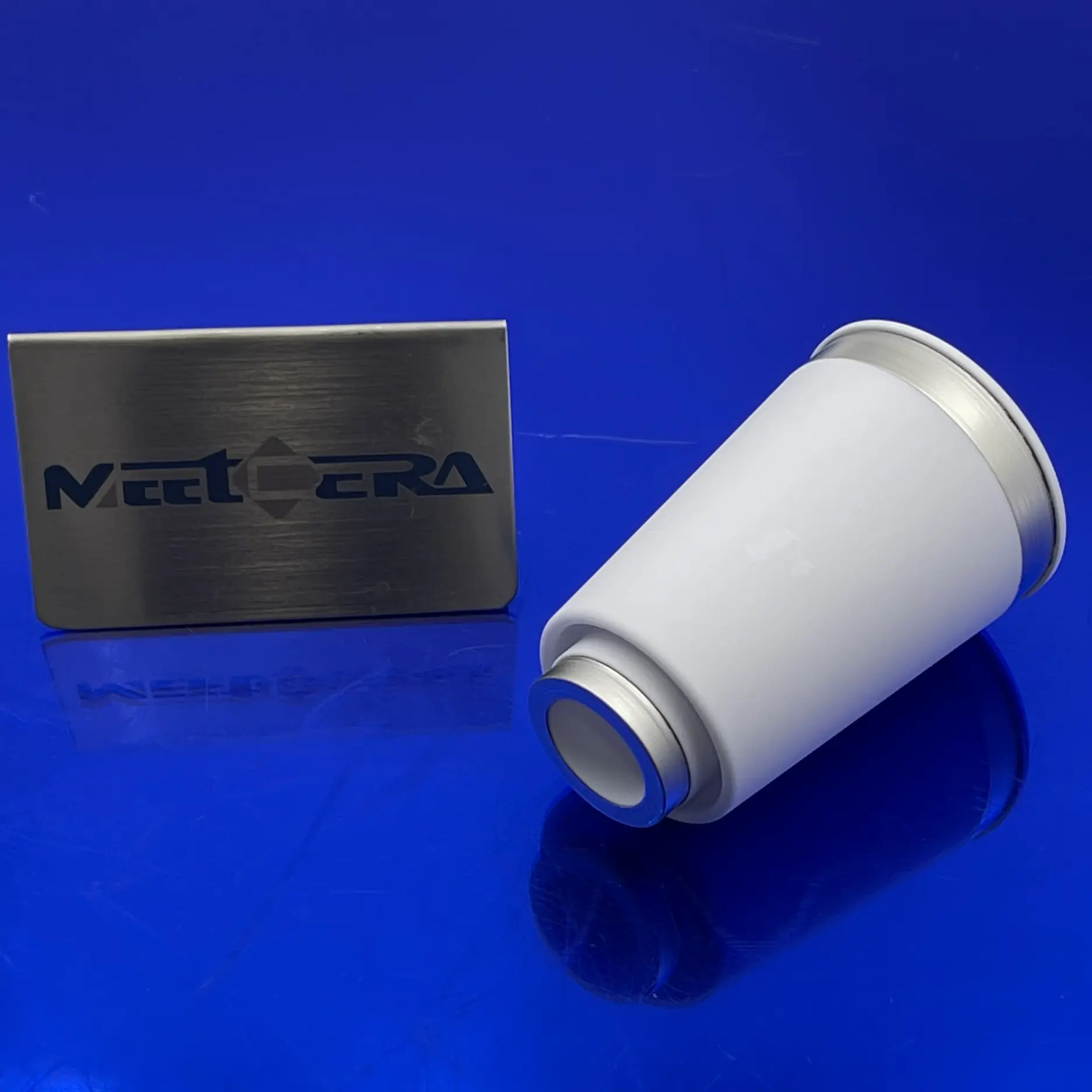

Featuring a precision-ground conical profile and high-integrity metallization (Mo-Mn/Ni/Au), these components are the preferred choice for RF feedthroughs, high-voltage standoffs, and vacuum interrupters. The tapered design not only optimizes the electrical path but also facilitates secure mechanical self-centering during the brazing process. Whether you are dealing with the extreme temperatures of aerospace igniters or the delicate vacuum of medical imaging, our ceramics deliver consistent, leak-proof performance.
We specialize in transforming complex technical drawings into high-performance ceramic-to-metal solutions. By integrating material science with precision machining, we help you reduce failure rates and extend the operational life of your high-power systems. Contact our engineering team today to discuss your specific taper requirements and request a technical consultation for your project.
3. FAQ
- Q1: Why choose a tapered ceramic over a cylindrical one?
- A: The tapered shape is superior for managing electric field stress gradients and can simplify mechanical self-alignment during assembly, reducing the risk of stress-induced cracking during the brazing cycle.
- Q2: What is the maximum temperature your metallization can withstand?
- A: Our Mo-Mn metallization is fired at temperatures exceeding 1300°C, making it suitable for brazing processes up to 1000°C with Ag-Cu or other high-temp alloys.
- Q3: Can you metallize both the ID and OD of the tapered surface?
- A: Yes, we offer selective metallization on internal (ID), external (OD), and end-faces with high precision, allowing for complex circuit integration or multi-point sealing.
