Metallized ceramic components

Place of Origin:Fujian, China
Brand Name:meetcera
Processing Service:Bending, Welding, Cutting, Punching, Decoiling, Moulding
Product name:Metallized Ceramic Tube
MOQ:1
Processing Service:Cutting,Punching,Moulding
Feature:Excellent Wear Resisting
Surface Treatment:Normal,polished,diamond polished,matte
Keywords:Vacuum Metallized Ceramic Tube
Type:Cermic Raw Materials,Tensioner
Material option:Alumina
ENQUIRY!
Categories
FacebookXPinterestRedditDeliciousLinkedinWhatsappTelegramEmail

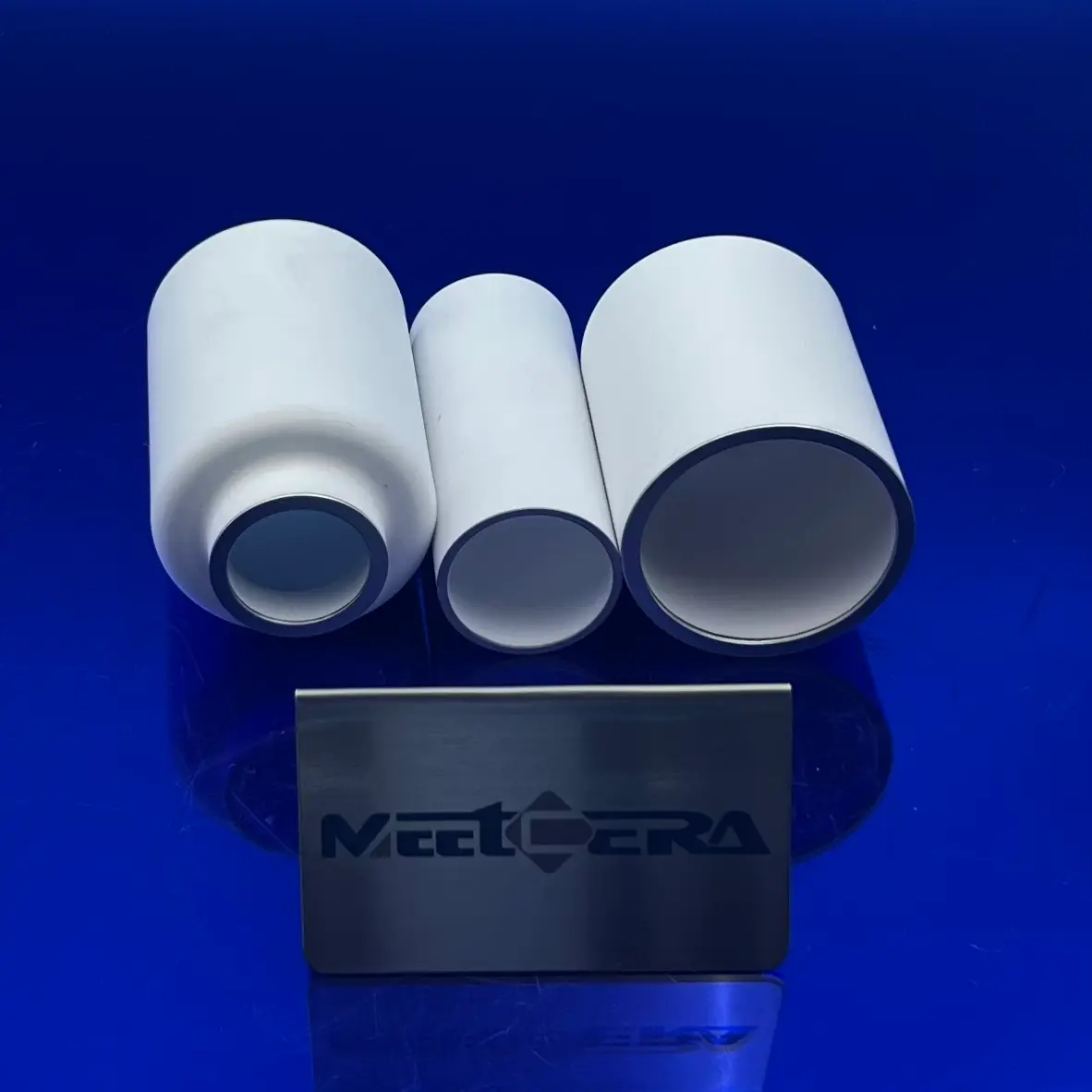

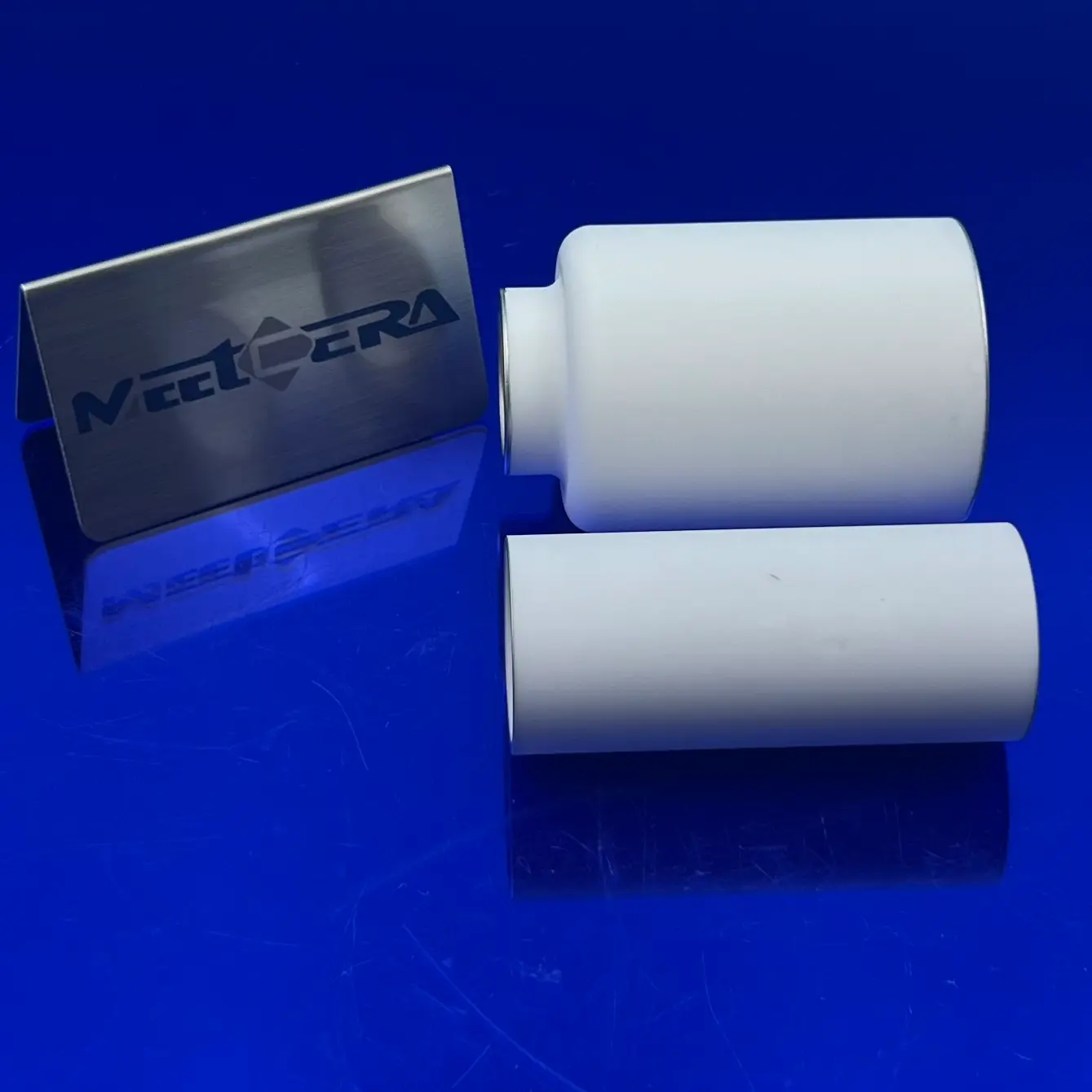

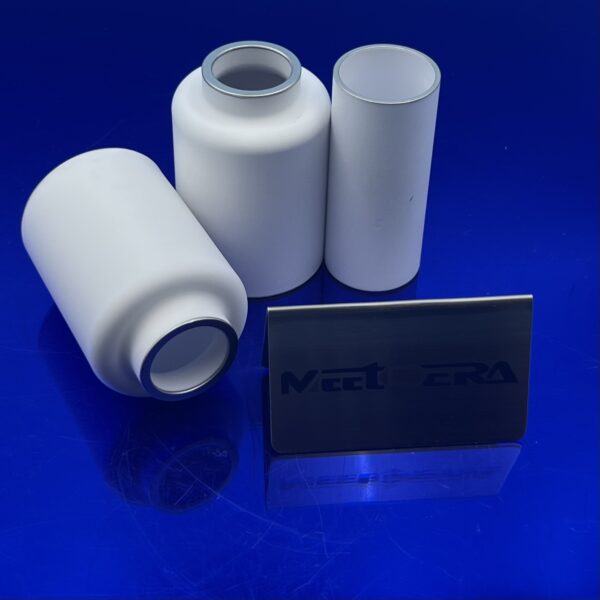

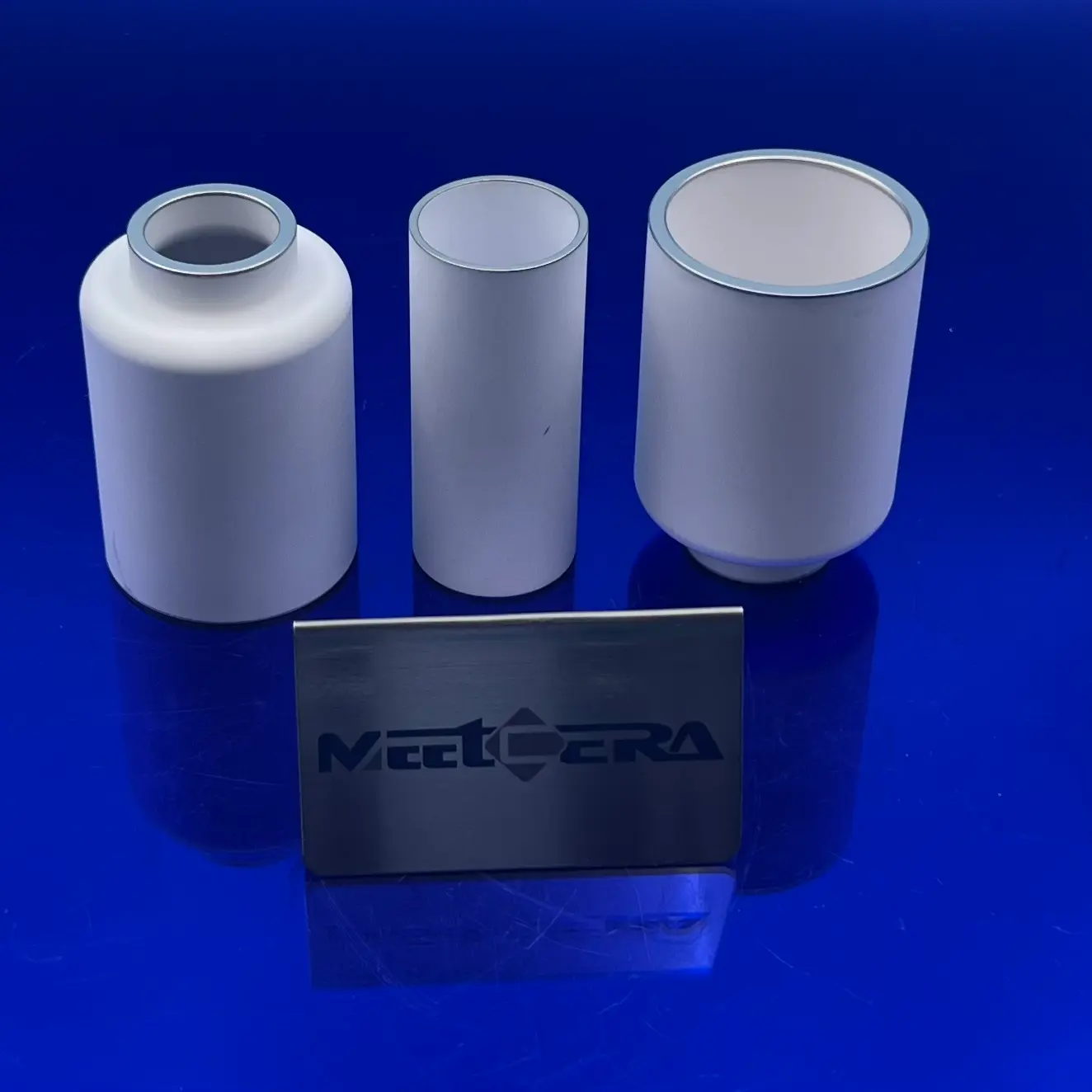

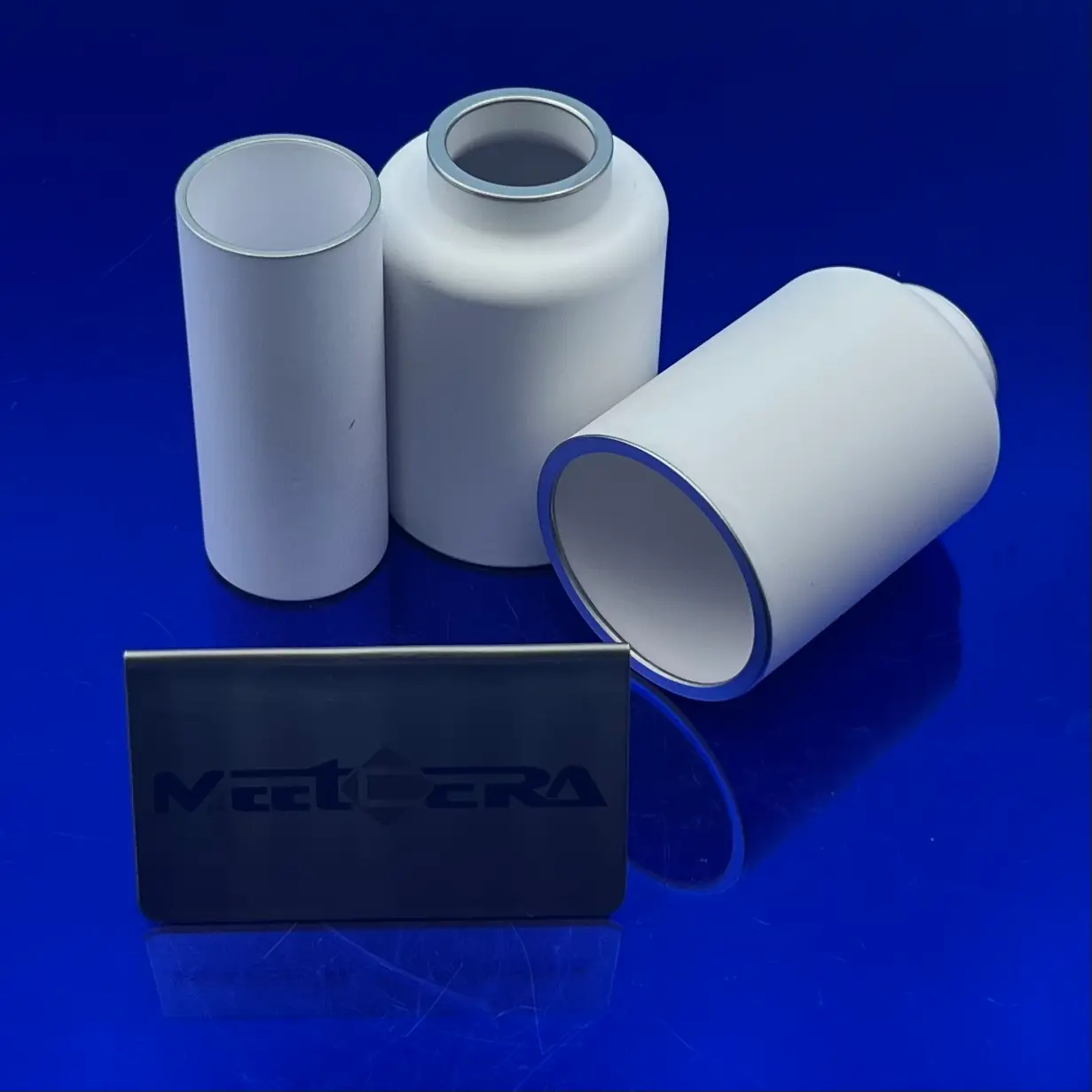

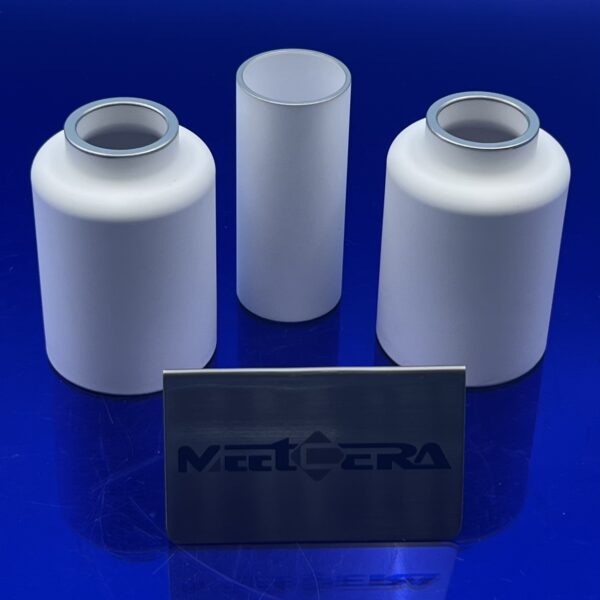

Metallized ceramic components

Meetcera supplies precision metallized ceramic components in aluminum oxide ceramics for the military, medical, and aerospace industries. Through spray, needle, and brush coatings or screen printing our capabilities allow us to metallized on flat, cylindrical, and complex ceramic bodies. Moly-Manganese is the typical base coat materials used for metallization.
Mo Mn Ceramic Feedthrough Ceramic Vacuum Electrodes
The Ceramic Surfaces for Brazing, the surface must be metallized.
Compare to Glass seal, Ceramic seal has exceptional resistance to thermal and mechanical shock as well as corrosion. While it requires more complex manufacturing processes and sophisticated engineering, the price is obviously higher.

Material
Alumina/BeO/AlN
Coating Layer
Mo/MnThickness:8-30μm
Plated Layer
Nickel, Copper, Gold, etc. Thickness: 2-9μm
Treatment
Glazed, polishing
Dimension
Customized
Joining types
Ceramic + Mo/Mn Metallized + plating Ni
Ceramic + Mo/Mn Metallized + plating Ag
Ceramic + Mo/Mn Metallized + plating Au
Ceramic + printing Ag

Metallized Ceramics Applications:

  • Ceramic Feed-through insulators,
  • Ceramic Headers,
  • Ceramic High-power receptacles,
  • Ceramic Insulating discs,
  • Ceramic Insulator rings and cylinders,
  • Ceramic Precipitator products,
  • Ceramic Power switches,
  • Ceramic Traveling wave tubes,
  • Ceramic Vacuum interrupters,
  • Ceramic components for Windows,
  • Ceramic Power grid tubes,
  • X-ray Ceramic tubes

Metallized Ceramics Joining types:

  • Ceramic + Mo/Mn Metallized + plating Ni
  • Ceramic + Mo/Mn Metallized + plating Ag
  • Ceramic + Mo/Mn Metallized + plating Au
  • Ceramic + printing Ag

Special types are available according to customer’s drawings or samples

Metallized Ceramic Download PDF Catalog
