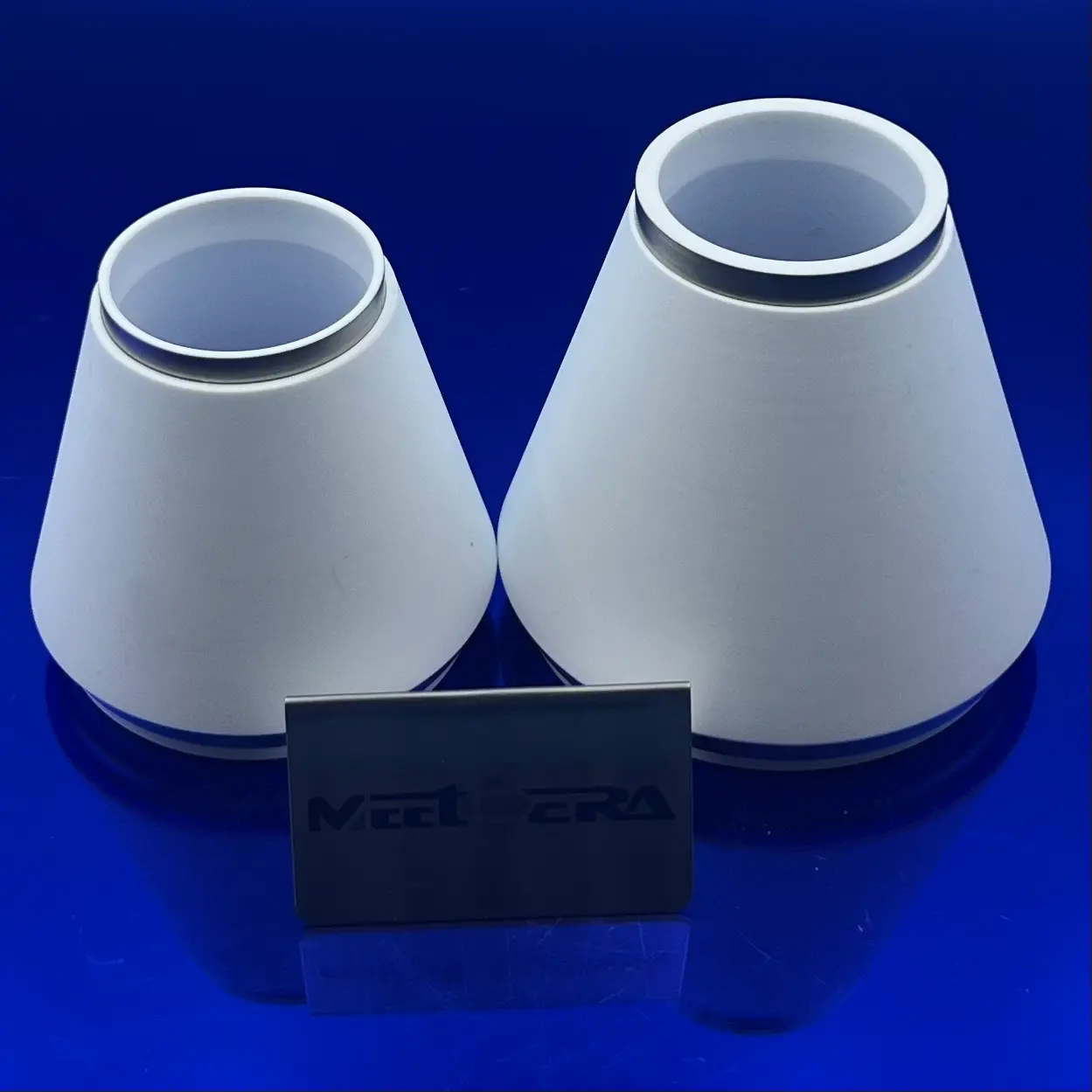

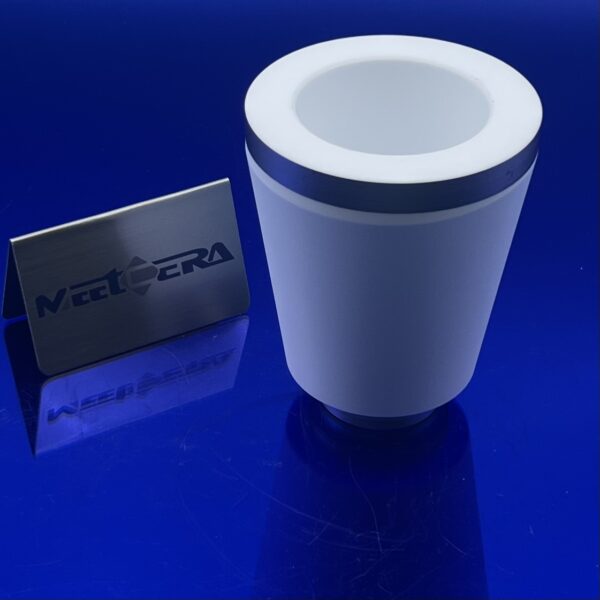

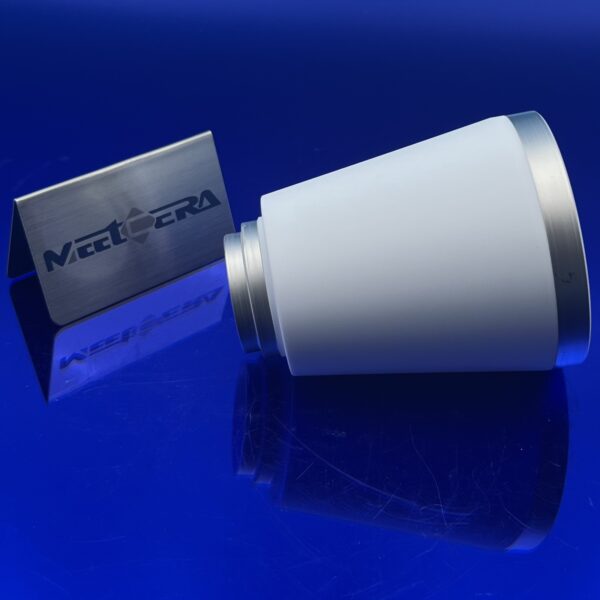

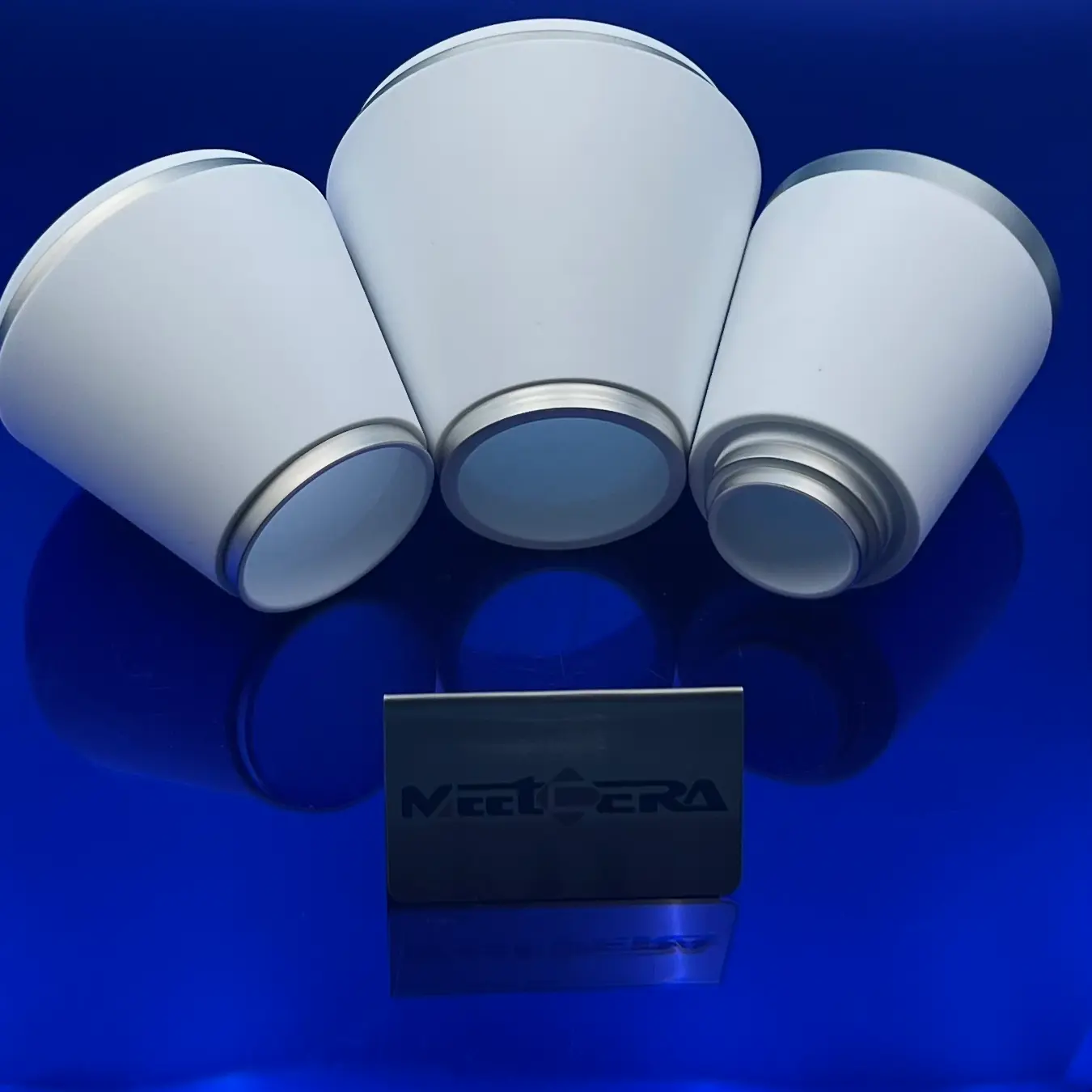

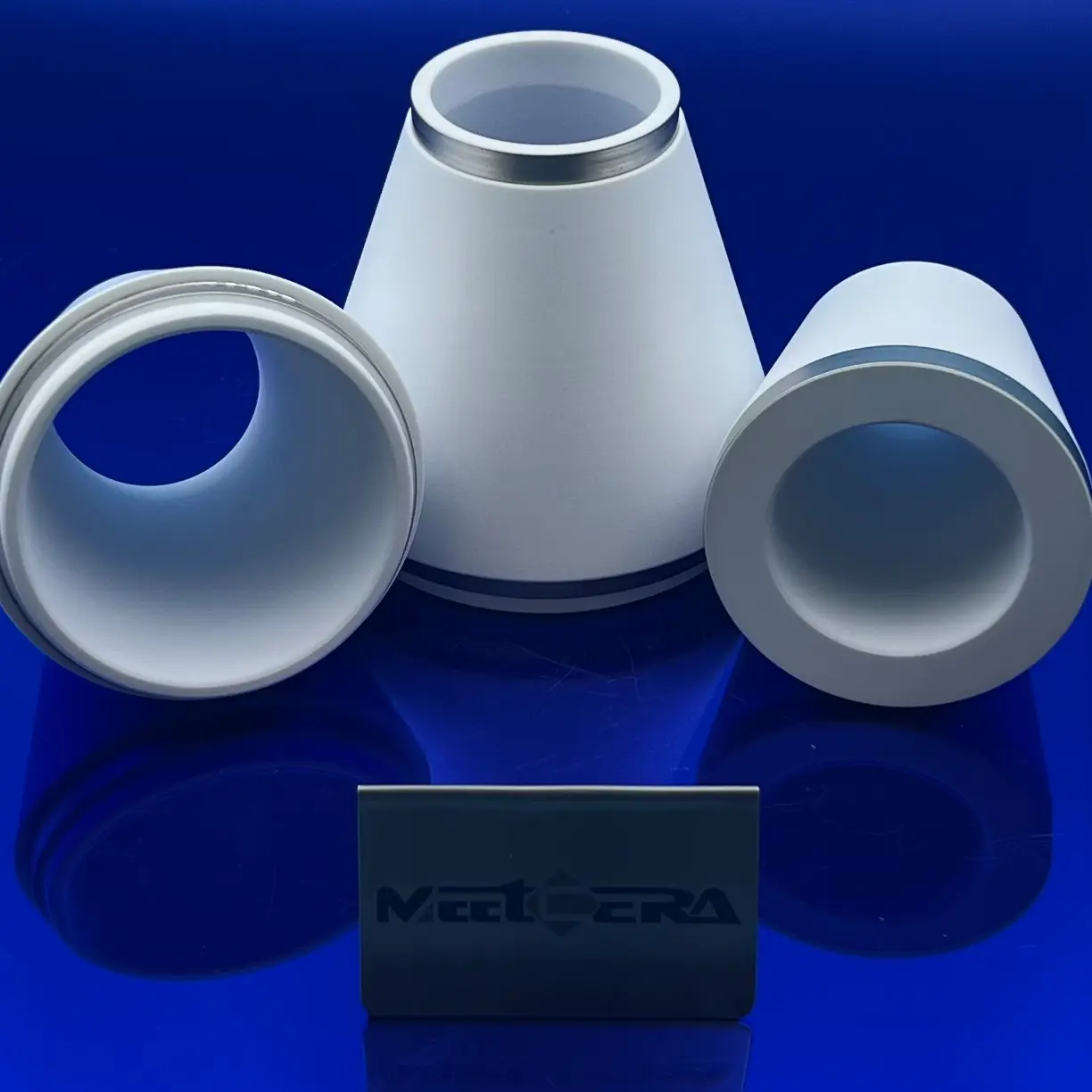

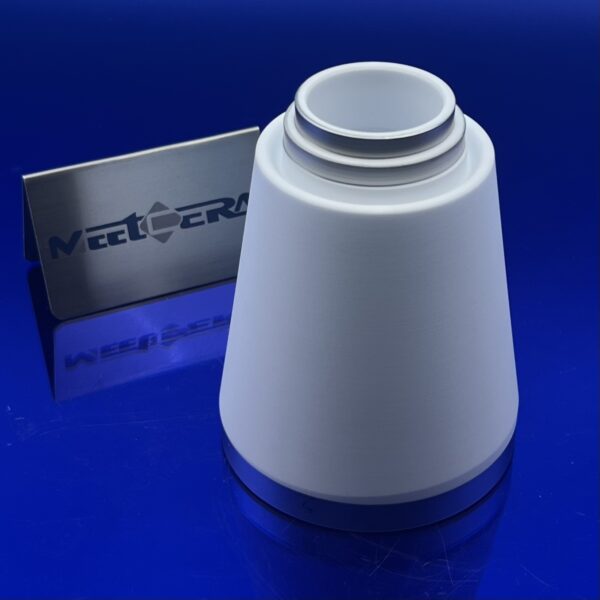

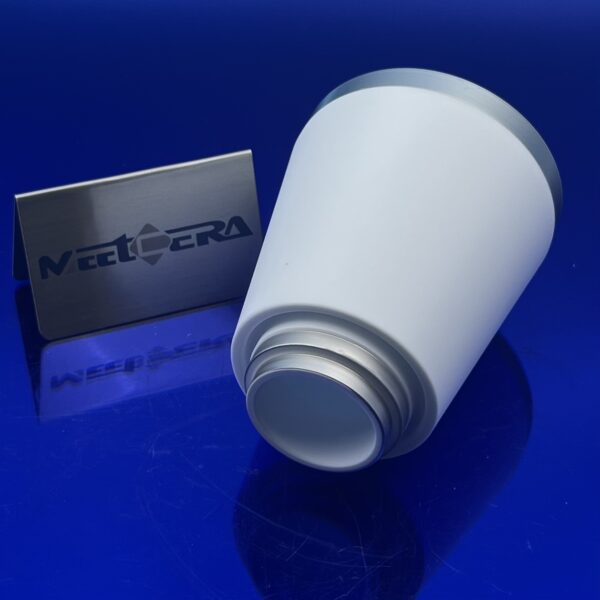

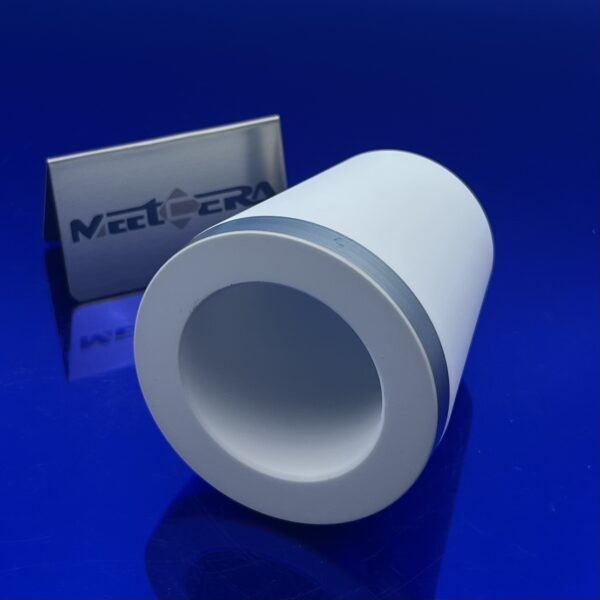

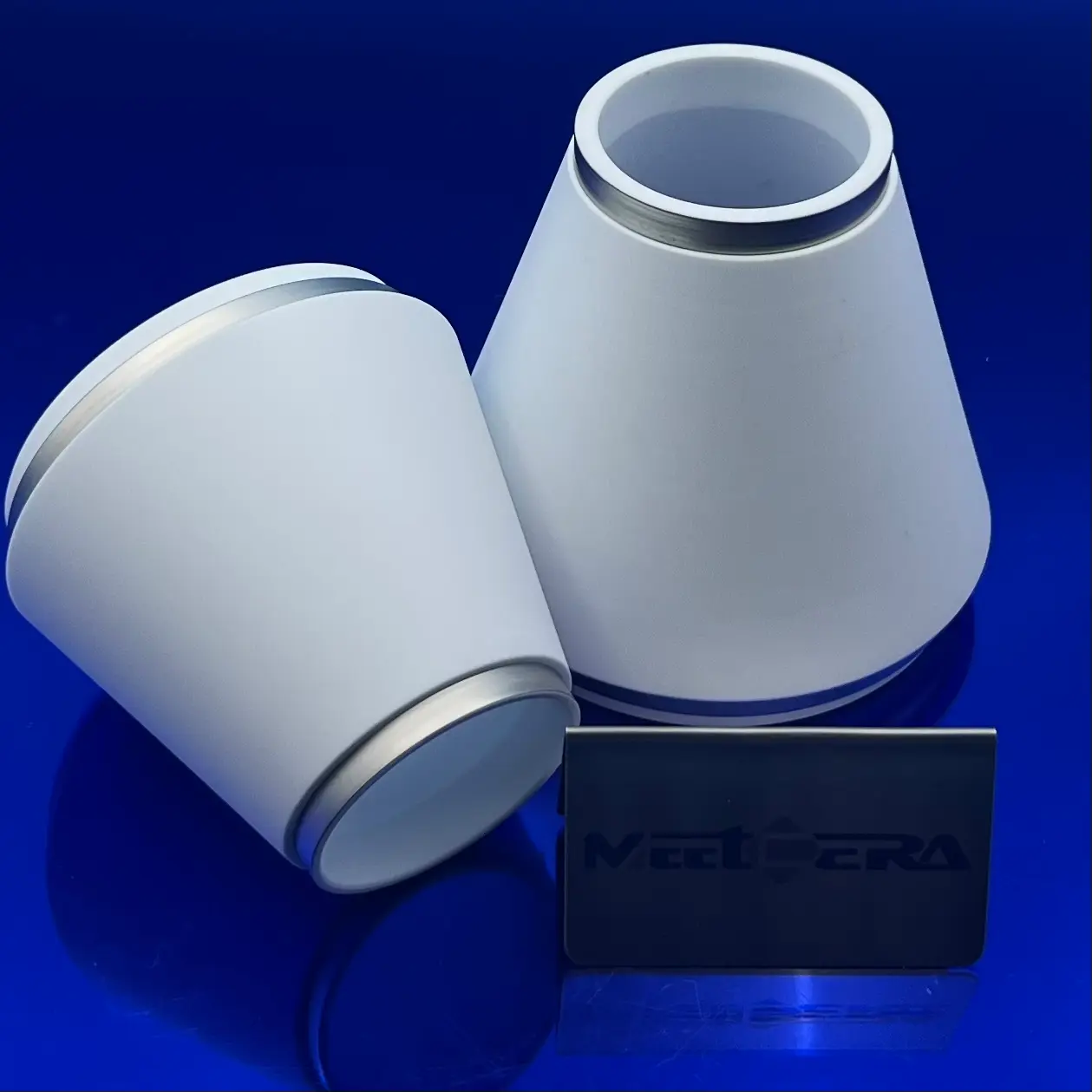

Metallized ceramic cone

Metallized ceramic cone

No. Parameter Typical Value / Specification Unit
1 Alumina Purity 95%or 99%  %
2 Bulk Density ≥ 3.63 g/cm³
3 Thermal Conductivity (25°C) 22.45 W/m·K
4 Coefficient of Thermal Expansion (20–1000°C) 8.26 ×10⁻⁶/°C
5 Flexural Strength ≥340 MPa
6 Dielectric Strength ≥8.3 kV/mm
7 Dielectric Constant (1 MHz) 9.1 @1MHz
8 Dielectric Loss (1 MHz) ≤0.0004 @1MHz
9 Metallization Layer (Mo/Mn) 15–25  μm
10 Plating Layer (Ni/Cu/Au etc.) 8–10   μm
ENQUIRY!
Categories
FacebookLinkedin

Metallized ceramic cone

Meetcera supplies precision metallized ceramic components in aluminum oxide ceramics for the military, medical, and aerospace industries. Through spray, needle, and brush coatings or screen printing our capabilities allow us to metallized on flat, cylindrical, and complex ceramic bodies. Moly-Manganese is the typical base coat materials used for metallization.
Material
Alumina
Coating Layer
Mo/MnThickness:15-25μm
Plated Layer
Nickel, Copper, Gold, etc. Thickness: 2-9μm
Treatment
Glazed, polishing
Dimension
Customized
Joining types
Ceramic + Mo/Mn Metallized + plating Ni
Ceramic + Mo/Mn Metallized + plating Ag
Ceramic + Mo/Mn Metallized + plating Au
Ceramic + printing Ag

Metallized Ceramics Applications:

  • Ceramic Feed-through insulators,
  • Ceramic Headers,
  • Ceramic High-power receptacles,
  • Ceramic Insulating discs,
  • Ceramic Insulator rings and cylinders,
  • Ceramic Precipitator products,
  • Ceramic Power switches,
  • Ceramic Traveling wave tubes,
  • Ceramic Vacuum interrupters,
  • Ceramic components for Windows,
  • Ceramic Power grid tubes,
  • X-ray Ceramic tubes

Metallized Ceramics Joining types:

  • Ceramic + Mo/Mn Metallized + plating Ni
  • Ceramic + Mo/Mn Metallized + plating Ag
  • Ceramic + Mo/Mn Metallized + plating Au
  • Ceramic + printing Ag

Special types are available according to customer’s drawings or samples
