What Is a CT Tube? A Complete Guide to the Core Component of CT Scanners
When a patient lies on a CT scanner for an examination, the component inside the gantry that spins rapidly and continuously generates X-rays is the “heart” of the CT system — the CT tube (also known as the CT X-ray tube). It converts electrical energy into an X-ray beam, allowing the scanner to capture detailed cross-sectional or 3D images from multiple angles. Without a functioning CT tube, CT scanning is impossible.
As one of the most expensive consumable components in a CT scanner, the tube directly affects image quality, radiation dose, scanning speed, and overall operational costs. This article explains the basic concept, structure, working principle, and key technical parameters of the CT tube to help readers build a solid understanding of this critical part.
1. Basic Concept of the CT Tube
The CT tube is a rotating anode X-ray tube specifically designed for computed tomography. Compared to conventional diagnostic X-ray tubes, it must handle much higher heat loads, faster rotation speeds, and longer continuous operation times, as CT scans often involve multiple rotations and helical exposure.
In simple terms, the CT tube’s job is to produce X-rays: electrons emitted from the cathode are accelerated by high voltage and strike the anode target, generating X-rays. However, over 99% of the energy is converted into heat — the main cause of tube wear.
2. Working Principle
The operation of a CT tube can be broken down into four steps:
- Thermionic emission: The cathode filament is heated by electric current, releasing a large number of electrons.
- Electron acceleration: A high voltage (typically 80–140 kV) is applied between the cathode and anode, accelerating the electrons into a focused beam.
- X-ray generation: The high-speed electrons bombard the rotating anode target (usually made of tungsten or tungsten-rhenium alloy), producing X-rays primarily through bremsstrahlung (braking radiation).
- X-ray output: The X-rays exit through the tube window, pass through filters, penetrate the patient, and are detected on the opposite side.
The CT gantry rotates the tube at high speed (multiple revolutions per second). Combined with simultaneous table movement, this creates helical scanning, greatly improving scanning efficiency and image continuity. For a detailed overview of CT instrumentation and physics, refer to this comprehensive review: CT Instrumentation and Physics - StatPearls - NCBI Bookshelf.
3. Structure and Components
A CT tube mainly consists of the following parts:
- Cathode: Includes the filament and focusing cup. It generates and focuses the electron beam. Most tubes feature a dual focal spot design (small focal spot for high resolution, large focal spot for high power).
- Anode: The rotating target is the most critical and heat-stressed component. Modern high-end tubes often use liquid metal bearings (Liquid Metal Bearing), which provide better heat dissipation, lower noise, and longer life compared to traditional ball bearings.

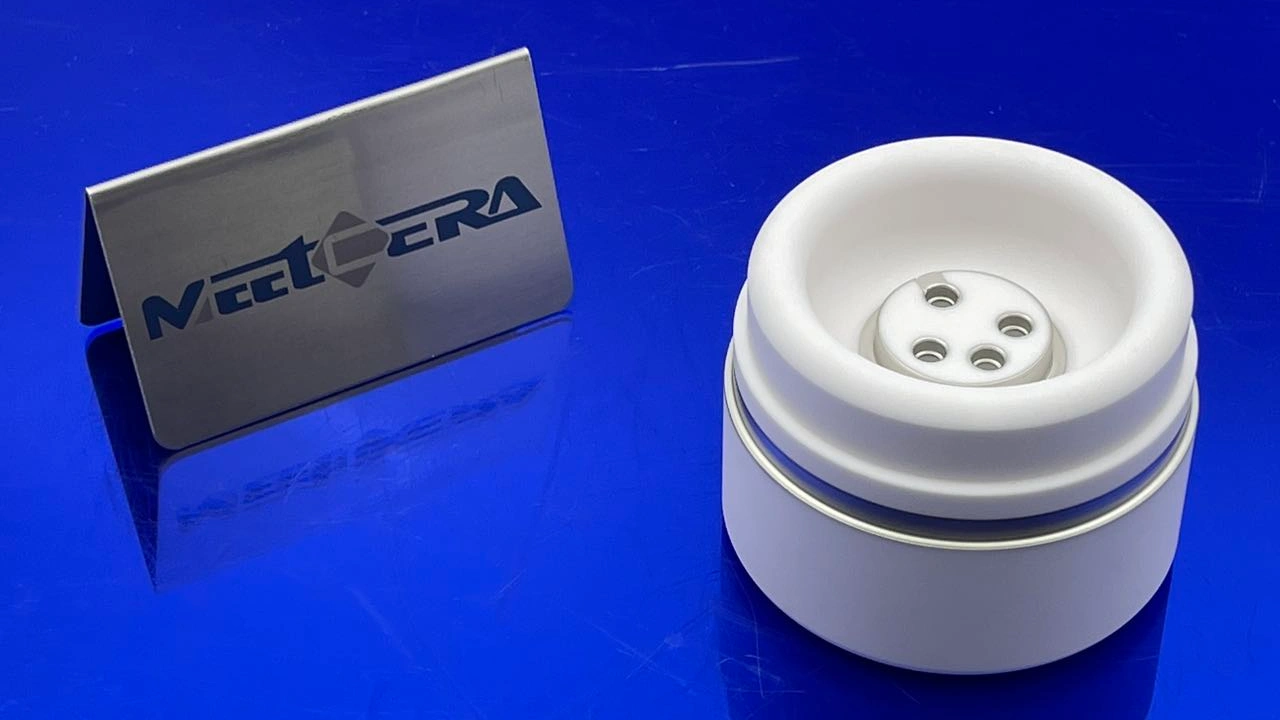

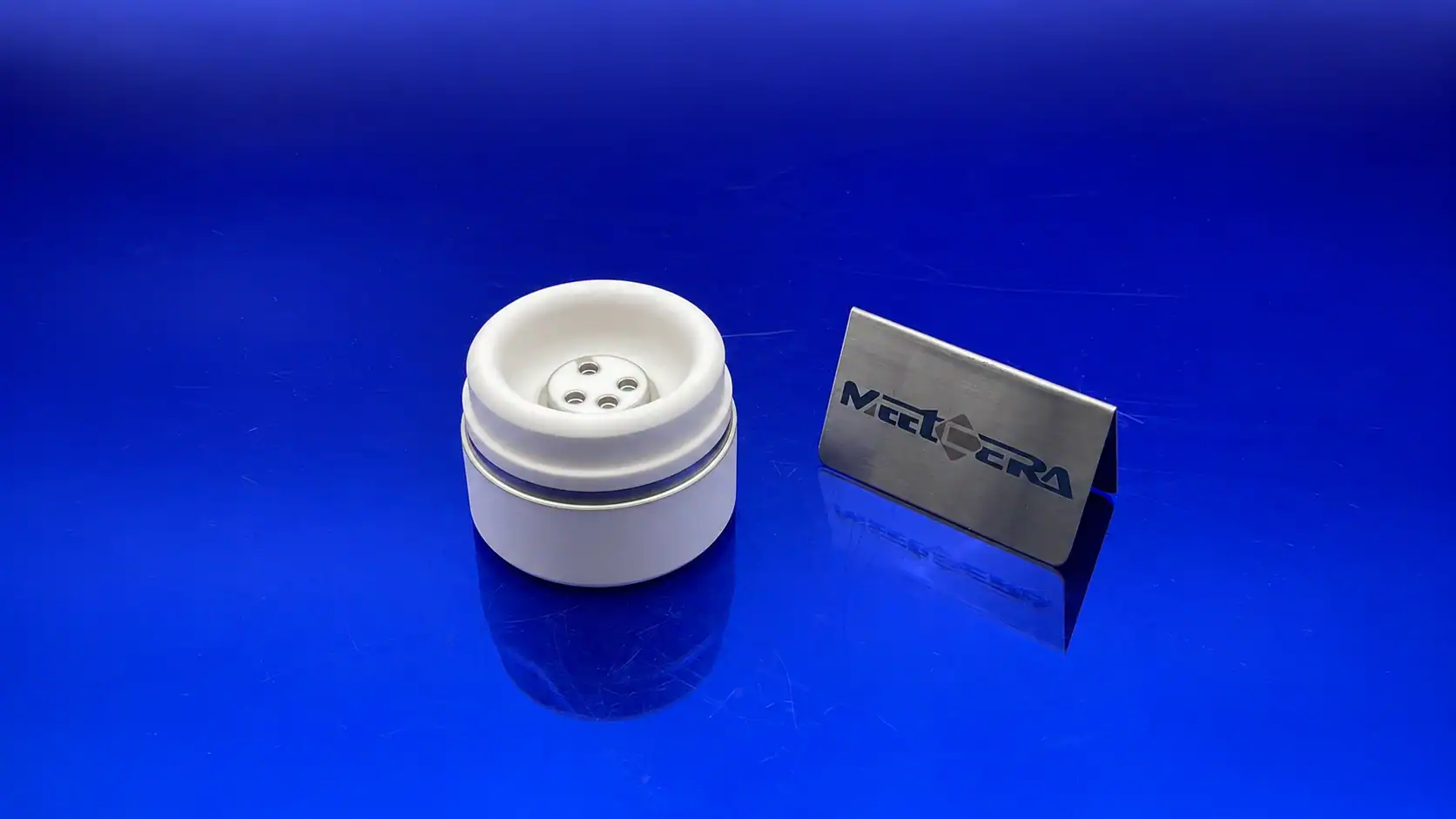

- Tube housing and envelope: A high-vacuum glass or ceramic envelope maintains the vacuum environment. The outer housing contains insulating oil for cooling and high-voltage insulation.
- Supporting systems: High-voltage connectors, X-ray window, stator (to drive anode rotation), and cooling circulation system.
The entire tube is mounted inside the rotating gantry, demanding excellent mechanical stability and thermal management. The U.S. FDA provides useful background on the principles of medical X-ray imaging, including CT: Medical X-ray Imaging - FDA.
4. Key Technical Parameters
The performance of a CT tube is mainly defined by these parameters. The table below shows typical values for modern CT tubes:
Table 1: Typical Technical Parameters of CT X-ray Tubes
| Parameter | Typical Range | Clinical Impact |
|---|---|---|
| Tube Voltage (kV) | 80 – 140 kV | Affects penetration and image contrast |
| Tube Current (mA) | 10 – 1000 mA | Determines X-ray intensity and image noise |
| Heat Capacity (MHU) | 3 – 8 MHU (some equivalent higher with advanced tech) | Higher capacity supports longer continuous scanning |
| Focal Spot Size | Small: 0.5 – 0.8 mm Large: 1.0 – 1.4 mm | Small spot for high resolution; large for higher power |
| Anode Cooling Rate | 400 – 1400 kHU/min | Affects scan speed and protocol flexibility |
| Typical Power Rating | 50 – 120 kW | Influences maximum performance during scans |
These parameters collectively determine clinical performance: high heat capacity enables faster scans and more detector rows, while optimized settings can significantly reduce radiation dose without compromising image quality.
Conclusion
The CT tube is the energy source of a CT system. Its structure and operating principle directly determine the accuracy of diagnostic imaging. Understanding these fundamentals is the first step toward mastering proper usage, maintenance, and clinical optimization. In the next article, we will focus on factors affecting tube lifespan and practical maintenance strategies.
